当社の包括的なソリューションは、問題の原因を根本から解決しました。主なステップとして、 初期材料をより焼入性の高い20CrMnMoH に置き換えました。それに加えて、ブースト段階の炭素ポテンシャルを1.15% から 1.05% に下げることで浸炭プロセスを微調整し、より制御されたケースを実現しました。焼入れ治具も均一な冷却を保証するものに変更されました。 This precision-focused process enabled consistent quality and gear cost control.
Results and Value
The newly implemented process made it possible to bring the unit gear manufacturing cost down to ¥135, thus making a 25% saving. Heat treatment distortion was limited to within 0.015mm thus cutting the scrap rate to 0.8%. The client was therefore able to save ¥900, 000 annually. In addition, the superior microstructure led to a longer gear life of 10, 000 hours, thus providing not only greater benefits but also effectively solving the fundamental issue of reduce gear manufacturing cost without compromise.
<ブロック引用>
This project is a great example of how we can handle complex, multi, variable process optimization that can lead to financial and performance gains, both of which are measurable, of course. By providing customized gear solutions, we tackle specific and high, stakes manufacturing issues, thus establishing a partnership through technical expertise and real return on investment for demanding industrial uses.
Facing challenges in controlling the cost of precision gears? Explore efficient cost-reduction solutions for planetary gears.
How Can Design Optimization Reduce Gear Manufacturing Costs?
Real cost reduction comes not only from the shop floor but also from the design stage, where as much as 70% of the final gear manufacturing cost is committed, hence the need to design for manufacture. Design for Manufacture (DFM) strategies focusing on a balanced combination of the macro geometry, micro, geometry, and material utilization have enough leeway for the necessary performance retention and achievement of significant savings. This gear cost guide that you are holding in your hands reveals the systematic approach of a cost, effective design:
System-Level Parameter Optimization for Strength-to-Cost Ratio
We evaluate the whole, system effect of macro-parameters such as module and face width. Let us take increasing the module from 2.5 to 3 as an example. This change may increase the raw material cost by 15%, but at the same time, it can increase the bending strength by more than 40%, which means that it may be possible to correspondingly reduce the face width or the material grade to get a net lower custom gear cost while still meeting the load requirements.
Micro-Geometry Modification for Performance and Post-Processing Savings
Applying targeted profile and lead crowning (e.g., 8m crown) during the design phase is a great cost, control measure. This in, built optimization compensates for assembly misalignments and load, induced deflections, thereby reducing the noise level of the operation by 3dB or even more. This eliminates the need for expensive running, in adjustments or selective assembly, thus, making the final precision gear machining process more straightforward.
Integrated Cost Modeling for Informed Design Decisions
We use a proprietary cost model to measure the impact of a design change on manufacturing. In a reducer gear project, an integrated analysis combining geometry, material, andhard gear machining process requirements revealed optimization moves that not only cut unit costs by 80 but also ensured that noise standards were met, hence proving that smart design is a powerful lever to control the final gear manufacturing cost.
<ブロック引用>
This method provides a systematic, data-driven framework for design and cost engineering. Leveraging these principles, we help our customers to make well, considered trade, offs during the design stage, gradually reduce gear manufacturing cost in a systematic way, and prevent expensive reruns, thus, the product is optimally valued right from the start.

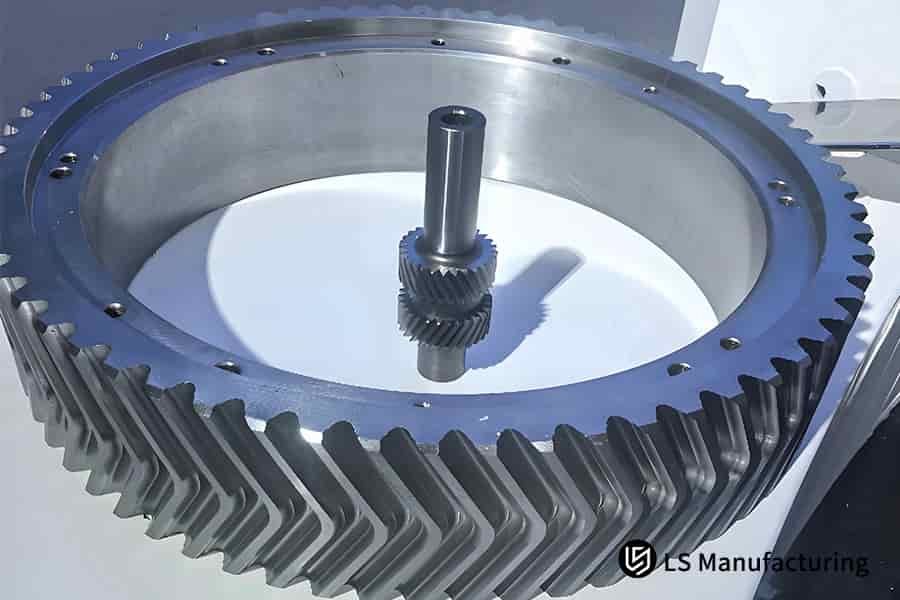

Figure 4: Displaying precision metal gears for gear manufacturing cost calculation and mechanical engineering applications.
Why Choose LS Manufacturing As Your Gear Manufacturing Partner?
Selecting a partner means that the success of your project depends on how well you balance the gear manufacturing cost with the uncompromising quality. We do not only give you a gear machining quote, but we also provide you with a guarantee through our integrated capabilities that help you change the cost from just a variable to a predictable and optimized result. Here is how we do it:
Precision Infrastructure for Predictable Quality
Our plant is designed to produce for the highest standards of repeatability, thus obtaining first, pass quality which is the main factor in controlling the final gear production cost.
Metrology: Our Klingelnberg inspection center is aguarantee of ±0.002mm accuracy, providing verification of every step.
Heat Treatment: Our Ipson/ALF controlled, atmosphere lines are aguarantee of temperature uniformity within ±5°C, therebyminimizing distortion and the resulting scrap.
Data-Driven Cost Forecasting for Budget Certainty
We do away with budget surprises by using empirically based modeling rather than estimation.
Predictive Analytics: Our pool of 286 projects serves as a basis forquantifying the impact of material, process, and design choices oncost.
Proven Accuracy: This tool can provide deliver quotes within 95% of the budget, as checked by client projects, thus giving you real financial control.
Holistic Process Integration for Total Value
We don't just focus on one step, but the whole value chain in order to get the best gear manufacturing cost.
From Design to Delivery: We study DFM together with process selection and logistics planning as one integrated system.
Tangible Outcome: Taking full responsibility for the entire process, this approach continually turns the potential loss of costs into real savings and performance guarantees.
<ブロック引用>
We work with customers by leveraging our precision infrastructure and proprietary cost models to give them control over what initially seems like uncertainty. This method makes sure that your gear machining quote is a trustworthy forecast rather than just an estimate and that the final gear manufacturing cost is optimized and predictable. The result is a managed gear production cost that matches your budget and performance goals, thus providing you with both financial certainty and technical excellence.
How To Obtain An Accurate Gear Manufacturing Cost Analysis Report?
Getting an accurate and useful cost breakdown is a must if you are to stay within project budgets, but is often made difficult by quoting procedures which are not transparent. Genuine gear cost guide not only gives you a price but also a transparent, data, driven analysis that points out the savings that can be made. We make this possible through a methodical, rapid, response framework built for both engineering clarity and financial predictability:
Submitting Comprehensive Specifications for Foundation
The process starts with you delivering the essential gear parameters: module, tooth count, precision grade (e.g., DIN 7), material grade, and annual volume. This core information enables our engineers right away to construct the main gear manufacturing cost models based on your specification, thus, the evaluation is not a generic one but is made to fit your exact application.
Rapid, Granular Analysis with Proprietary Cost Modeling
We come back with a comprehensive report dissecting the costs into raw material, machining (including precision gear manufacturing), heat treatment, and overhead within 4 hours. It is driven by our dataset of 286 projects, which matches your specs with past data to forecast not only the realistic costs but also the potential variances, thus laying the foundation for a dependable gear machining quote.
Actionable Recommendations for Immediate Value
We put forward focused targeted optimization strategies besides the cost breakdown. For a client, our detailed examination showed that changing their heat treatment process andgear hobbing settings can cut the unit cost by 18%, which is equivalent to 2 million annual savings, thus our report is a weapon in the hands of a cost, cutting strategist.
<ブロック引用>
We bring clarity to your specifications by empirically backing them and converting the data into a clear cost model. Through this method, you get not only a gear machining quote but a comprehensive strategic gear cost guide that clearly shows the directions you can take to cut your entire gear manufacturing cost without any doubts.
FAQs
1. What is the cost variation pattern from prototype to mass production of gears?
Prototype costs are usually 3-5 times more than mass production costs. LS Manufacturing limits the prototype costs to only twice the mass production cost by using smart prototyping methods and thus shortening the verification turnaround.
2. In which aspects do the cost increases of high, precision gears mainly manifest?
As a rule of thumb, every increment in precision level causes the processing costs to rise by 30-50% and the inspection costs to be almost doubled. Therefore, it is necessary to assess whether the demand for higher precision is justified.
3. How to control costs in small, batch gear production?
LS Manufacturing eliminates the cost of small batches of 500 pieces by 25-35% through the use of standard materials, process route optimization, and combining processing methods.
4. How significant is the impact of heat treatment processes on gear costs?
Heat treatment constitutes 15-25% of the cost. Changes in the procedure can reduce expenses by 10-15% without jeopardizing the performance. Stepwise choice of a scientific approach is required.
5. How to evaluate the impact of gear design modifications on costs?
Prepare the change plan, and LS Manufacturing will deliver a cost impact analysis within 2 hours to help you make your decision more efficient.
6. What is the typical cost optimization potential in mass production of gears?
Through in-depth optimization, equipment and related costs can be reduced by 20% to 35%. LS Manufacturing makes available detailed optimization plans.
7. Where are the main cost differences between gears made of different materials?
The difference in material costs is between 30-60%, but the selection of the optimal solution should be based on a comprehensive consideration of lifetime and processing costs.
8. How to obtain an accurate gear machining quote?
Submit your gear drawings and specifications to LS Manufacturing, and they will get back with a clear quotation along with a detailed cost breakdown analysis within 4 hours.
Summary
Gear manufacturing cost control is a systematic engineering process that involves thorough consideration of several aspects, such as material selection, processing routes, precision levels, and batch size. Relying on scientific cost models and seasoned project experience, LS Manufacturing not only assists customers in optimizing their costs by 20-35% but also helps them in maintaining the quality standards.
In case your gear project is encountering the difficulty in controlling the costs of the gears, do not hesitate to get in touch with us right away. Provide your gear parameters and get a free cost analysis report. Present your requirements to receive a well, targeted cost optimization plan!
