精密亚克力激光切割服务：复杂零件的定制解决方案

自动微桥接确保纸张完整性

1. 挑战：​ 随着部件与板材完全分离，切割时部件移动或掉落的可能性变得更大。
2. 我们的方法：​ 软件在应力产生的特定点各个零件之间建立微桥，确保它们在切割过程结束之前保持稳定。
3. 结果：​它使我们能够在不影响切割质量的情况下实现最佳嵌套，这对于确保精密激光切割项目至关重要。

集成成本建模和报告

• 挑战：​ 通过高效嵌套节省成本的潜力是假设的，缺乏向客户提供的具体解释。
• 我们的方法：我们为每个嵌套项目提供单独的报告，详细说明所用材料的数量、产生的废物量以及报价中固定的每个零件的材料成本节省。
• 结果：​上述数字基于事实提供透明度和成本优化，确保在单价水平上实现提到的成本节省。

本文介绍了一种技术上合理的方法，该方法使用来自主要成本中心之一的材料，并将其转变为我们业务的高效部分之一。浪费问题的答案在于动态切口管理和几何形状优化以及流程保留自动化技术。技术复杂程度有助于我们展示具有价格竞争力的工程塑料激光切割。

图 3：激光切割在透明亚克力上钻孔，用于厨房电器控制按钮。

精密激光切割服务能否在 10000 个单位中保持微米级的一致性？

在批量生产中，一致性是供应链可靠性的关键。本文档详细介绍了技术协议，使我们的系统能够在 10,000 多个单元运行的1.5 米尺度上保持±0.05mm的位置公差。我们通过严格的CPK稳定性​指标控制的闭环焦点校准系统来实现这一目标，确保精密激光切割服务的确定性输出。

As can be seen in this paper, it is very clear that precision to a micron is an engineering accomplishment. Using real-time feedback on focusing and positioning along with process control, we are able to minimize errors and provide the reliability required for closed-loop laser cutting in a zero defect, high volume supply chain environment.

Why Is Laser Cutting Solutions For Acrylic The Key To Achieving Ra 0.8 Surface Finish On Thick Plates?

It is a hard technical problem to make a vertical cut and get a surface finish Ra 0.8 on acrylic sheets (20-30mm). Below is the summary of how our patented method, frequency-modulated pulsing protocol, will help us to have control over both the geometry of the cut and the quality of the surface simultaneously, meaning cuts with deviation in verticality <0.5° and Ra ≤0.8µm - important for advanced purposes:

Dynamic Frequency Modulation for Controlled Heat Input

Unlike the usual CW (continuous wave) or constant-pulse laser that provides non-uniform heat input and causes recast layer and striations, in our approach the frequency and amplitude of the laser pulses are changed in real-time while the laser cut goes through the thickness of the sheet. Thus, we can control HAZ (heat affected zone), thereby preventing undesired melting and getting high-quality surface finish. This is why we offer superb acrylic laser cutting service.

Assist Gas Optimization for Molten Material Ejection

Besides cutting quality, a smooth surface requires proper evacuation of the melt from the kerf. We utilize a controlled and pressurized laminar flow of dry air or gas mixtures. The gas flow is synchronized with the pulsed laser to remove the melt immediately from the kerf without returning to the cut wall. This process is important for efficient thick plate cutting. This system represents one of the main components of our precision laser cutting systems.

Integrated Parameter Optimization via Digital Twin

These parameters can vary and are optimized for every unique material and its thickness by using a computer simulation of the cutting process. Before actual production begins, we simulate the complete laser cutting process and achieve a prediction about its performance, thus obtaining an exclusive parameter set providing perfect edge perpendicularity and lowest possible surface roughness. It is a more complex approach than usual, providing laser cutting solutions for acrylic materials with guaranteed results, which we demonstrate with the help of metrology reports after thick acrylic laser cutting.

This paper outlines a deterministic method, resolving the issue of quality versus efficiency in thick material processing. The ideal result, which involves getting a high-quality edge laser cutting, can be achieved using sophisticated beam handling systems, accurate gas handling, and simulations before production. The sophisticated technology outlined in this paper, supported by complete dimensional measurement reports, provides a unique advantage, ensuring that a typical process becomes a definite solution for manufacturing optical-quality edges on acrylic materials.

How Does Complex Part Laser Cutting Minimize The Heat Affected Zone For Heat Sensitive Components?

For the case of heat-sensitive acrylic components, the thermal energy input created by the process of complex part laser cutting will eventually result in low durability because of HAZ weakening. The present paper provides detailed information about the dynamic power compensation solution we have developed, which is able to prevent HAZ thickness from going under 0.1mm and thus preserve more than 98% of tensile strength in the base material.

Adaptive Power Modulation for Thermal Management

1. Challenge: Continuous energy input through the laser causes overheating of the material and creates a significant zone of weakness.
2. Our Method: We reduce laser energy consumption in areas of paths' bending and vector ends where the majority of energy tends to accumulate.
3. Outcome:​ Through heat restriction, we can guarantee accurate HAZ control that is required for a proper electronic-component laser cutting.

Intelligent Cooling with Synchronized Gas Pulsing

• Challenge: Conventional techniques used for dissipating heat through gas flow do this quite inefficiently for thin structures.
• Our Method: Through gas pulse cooling that occurs when the laser stops working, heat is quickly dissipated.
• Outcome: ​This is an efficient method for controlled cooling to control the thermal profile of the sensitive component laser cutting.

Validated Process Libraries for Predictable Outcomes

1. Challenge:​ The general setting cannot be used for heat-sensitive materials like composite materials and cast acrylic.
2. Our Method:​ We rely on our material-specific recipes from a proprietary process library, which have been already validated using metallographic testing to ensure adequate HAZ depth and strength of material after laser cutting.
3. Outcome:​ This approach guarantees our clients that our precision acrylic laser cutting services will provide reliable and validated results. This is how we define our expertise in low-HAZ laser cutting.

This paper explains a thermal management process aimed at solving the HAZ issue using power control, cooling synchronization, and pre-validated parameter settings. The method guarantees minimal thermal effects to provide parts with reliable performance and high structural integrity to meet the advanced standards of electronics and medical devices integration, which is empirically proven in laboratory tests.

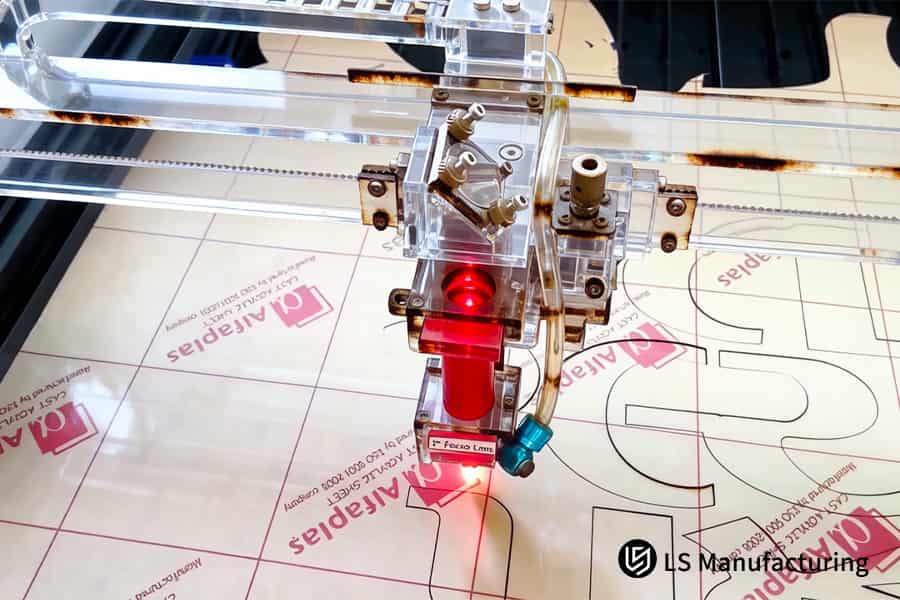

Figure 4: Precision acrylic laser cutting services mark registration patterns on acrylic for rapid prototyping systems.

Case Study: LS Manufacturing Medical IVD Equipment Window Precision Custom Solution

This case study explains how LS Manufacturing solved an important problem with a 15mm thick optical inspection window in an IVD equipment from an international company. The faulty component was unable to withstand autoclave sterilization, resulting in leakage. Our innovative solution utilizing custom fabricated laser cutting and post-processing ensured improved reliability, proving our ability to provide mission-critical medical-grade laser cutting:

Client Challenge

The client’s original observation window of 15mm cast acrylic had micro-cracking due to thermal stresses on the edges, resulting in only 65% assembly yield and product failure during 500-cycle autoclave test validation. As a consequence, this caused delay and incurred huge costs in terms of scrapped parts. This ultimately delayed the schedule of final device assembly.

LS Manufacturing Solution

High cross-link cast acrylic was selected for the chemical resistance of the product. The key technology we developed was the bi-directional gas cooling precision laser cutting process. Once the contouring is done, our proprietary 6-hour step annealing removes any stress. The path compensation is ensured through a 100% CCD vision system for complex part laser cutting.

Results and Value

The final parts had a 100% pass rate when tested for helium leaks. The cut surface had an optical grade Ra 0.4 surface roughness, and no further polishing was required. First-pass assembly yield went up to 99.8%. This led to the client's assembly time being reduced by two weeks and a 18% decrease in part costs overall, giving decisive rapid prototyping and manufacturing benefits.

This particular case is one that shows just how LS Manufacturing has used their engineer-driven approach to solve some really tough problems in manufacturing. We were able to develop a reliable process because of our use of material science in combination with controlled thick-plate laser cutting and stress relieving techniques.

If your medical windows require guaranteed sealing under autoclave sterilization, contact us for a precision cutting and annealing solution that ensures zero leakage and maximum yield.

常见问题解答

1. Why choose LS Manufacturing for my precision acrylic laser cutting project?

In addition to the precision tolerance of ±0.05mm, we conduct pre-design DFM analysis and stress relief techniques suitable for specialty acrylic materials to ensure your parts' optimal functionality.

2. What is the maximum thickness for high-quality acrylic cutting services at LS Manufacturing?

Using a 15kW high brightness laser cluster, we are able to supply cast acrylic parts with thicknesses up to 50mm, all while providing edge perpendicularity up to industry standards.

3. How quickly can I receive a quotation for a complex, custom-fabricated laser cutting order?

Simply submit your STEP files, and our engineering department will provide you with a detailed quotation—including machining recommendations—within 12 to 24 hours.

4. Does LS Manufacturing support low-volume production for custom laser cutting services?

Of course, we do not apply rigid Minimum Order Quantities. We help you advance quickly through the product development phase, by delivering rapid prototyping & validation, which guarantees an effortless transition from prototype into full-scale manufacturing in terms of accuracy and quality.

5. Can you achieve optical clarity on the cut edges of complex acrylic parts?

Yes, using precise control over laser pulses frequency as well as the amount of gas used as auxiliary gas, we can obtain the surface of cut material having "flame-polishing" quality with Ra up to 0.8.

6. How do you prevent crazing during your acrylic laser cutting service?

We prevent crazing by implementing an ISO-certified, controlled annealing process to relieve internal stresses, thereby ensuring that your parts remain structurally stable even when exposed to solvents or extreme environmental conditions.

7. What certifications does LS Manufacturing hold for medical-grade precision fabrication?

We hold both ISO 9001 and ISO 13485 certifications. Our production processes fully comply with the quality traceability requirements for precision components mandated by both the EU RoHS directive and the FDA.

8. Why is laser cutting more cost-effective than CNC milling for clear acrylic parts?

Laser cutting offers a 400% increase in processing speed and inherently produces a smooth, finished edge. This eliminates the need for expensive 5-axis CNC machining time and subsequent manual polishing costs, thereby significantly reducing your unit cost per part.

摘要

Exceptional acrylic laser cutting extends far beyond simple material shaping. At LS Manufacturing, true precision is achieved through micronlevel heatzone control, engineered stress relief, and rigorous DFM optimization. We transform complex physical parameters into measurable commercial value—whether for optical windows or zeroclearance medical bases. Partner with a provider skilled in materials science and integrated processes to ensure your project is delivered on time, to spec, and on budget.

Stop letting supplier-induced processing cracks or dimensional inaccuracies delay your product’s time-to-market. Your precision designs deserve a physical realization solution of laboratory-grade quality. Click the "Get a Quote" button below to upload your technical drawings; LS Manufacturing’s team of senior engineers will provide you with a complimentary, one-on-one DFM feasibility assessment, helping you secure the most competitive, direct-from-manufacturer solution within just 24 hours. Let us define your brand's value through the power of precision.
