全球排名前 10 位的中小批量定制组件真空铸造服务供应商

真空铸造服务是一种非常精确的小批量生产的塑料定制技术，能够生产 10 至 500 件。如今，通过注塑进行小批量试产通常会遇到机器停机、3D打印质量差、批量生产时普通硅胶模具失效等问题。事实上，很多传统服务商由于工艺控制不到位，出现了孔隙率、收缩率过大、树脂固化不均匀等质量问题，导致采购和选型难以把控。

本文对行业领先的成型工艺进行了全面分析，列出了全球排名前 10 的供应商的优点，帮助您了解真空铸造的基本原理并选择适合您需求的定制解决方案。

全球真空铸造服务核心答案概览

<正文>

主要结论

• 精确控制：有助于选择价格实惠的全球制造商，并拥有1000级洁净室真空铸造设置，以确保光学级透光率。
• 寿命限制：当铸造PU-8400等腐蚀性很强的材料时，每个模具的脱模数量必须达到20个。
• 最优决策：基于对比测试，辅以LS Manufacturing自主研发的数字模温补偿系统，关键配合件的尺寸公差可控制在0.1mm以内。

为什么信任 LS Manufacturing 在中小批量定制组件真空铸造服务方面的经验？

通过利用我们完全开发的定制真空铸造服务，我们是为许多行业小批量、高精度定制零件的专家。 除了在该领域拥有非常丰富的项目经验之外，我们还能够完美地满足严苛的定制标准，例如医疗和汽车行业对尺寸精度、表面光洁度和法规遵从性的要求。

我们对12种主要类型的浇注硅胶进行了为期六个月的对比老化测试，整个过程遵循ISO 188橡胶热老化测试国际标准。这项研究证实，加成固化铂有机硅的撕裂强度远高于标准缩合固化有机硅的撕裂强度。除此之外，我们还收集了 50 多种改性聚氨酯配方，这些配方的物理性能可与超过 95% 的批量生产塑料的性能相匹配。

我们的实验室已通过医疗器械ISO 13485认证，完全有能力提供详细的生物相容性测试报告。最重要的是，我们独有的模具温度补偿技术使我们能够实时对模具温度进行非常小的、微调的变化。因此，这对于始终将关键配合公差保持在0.1毫米的严格范围内并完全避免零部件的装配错误非常重要。

双行业权威认证体系，加上自主研发的材料和温控工艺，夯实小批量真空铸造的精度和合规基线，适应医疗、汽车等多个领域的精密定制生产。要系统地掌握合规的成型标准，下载专用的真空铸造工艺白皮书。

哪些全球真空铸造供应商能够始终将小批量定制组件达到 0.15 毫米以下的严格精度公差？

一流的全球真空铸造供应商拥有生产精密真空铸造的专业知识需要通过成型工艺的精确性来控制尺寸公差的铸造组件。 通过模具温度控制和母模精密加工，小批量零件可以达到0.15mm公差范围内的高精度成型效果。

核心精度公差控制流程

• 数显模具预热技术：该系统将模具温度保持在1，有效减少树脂收缩变化，同时也有助于建立专业真空铸造精密成型工艺，作为精度的基础。
• 硬化钢母模：表面粗糙度Ra 0.02μm，保证硅胶模具复制精度，从源头上避免尺寸偏差问题。
• 流变预测试：对每批树脂的粘度曲线和凝胶时间进行 40 次测试，以满足不同材料的精密成型要求。

主流供应商能力对比

专业化低真空铸造服务需要极高的模具精度和工艺参数控制，这是实现微型精密零件稳定成型的关键。为了直观区分主流厂商的精密成型能力，下面从公差、尺寸、结构适应性等关键维度进行对比。

供应商	最大成型尺寸	稳定公差	平均配送时间	核心优势	主要缺点
LS 制造	1200mm	±0.12mm	3-5个工作日	高精度、长寿命、医疗和汽车应用双重认证	超大部件的能力有限
原型实验室	800mm	±0.15mm	5-7个工作日	极快的交货，高度一致的质量	价格高，设计限制多
捷普	900mm	±0.16mm	6-8 个工作日	全球产能，全供应链服务	小批量响应时间慢
RapidDirect	700mm	±0.18mm	3-7个工作日	性价比高，报价响应快	复杂结构的中等能力
Xometry	600mm	±0.20mm	7-10个工作日	庞大的供应商网络，一站式服务	质量不稳定，中间商涨价
FacFox	650mm	±0.20mm	7-10 个工作日	多种材质选择，便捷的在线平台	平均精度控制
虚构	500mm	±0.22mm	7-10个工作日	质量管理、订单可见性	价格更高，间接技术沟通
第一个模具	600mm	±0.22mm	7-10个工作日	丰富的模具经验	交付周期长，认证不完整
3erp	550mm	±0.23mm	5-10个工作日	价格低廉，基础能力扎实	高端材料选择有限
Waykernm	500mm	±0.25mm	8-12个工作日	入门级，价格优势显着	质量控制差，技术支持薄弱

<块引用> <正文>

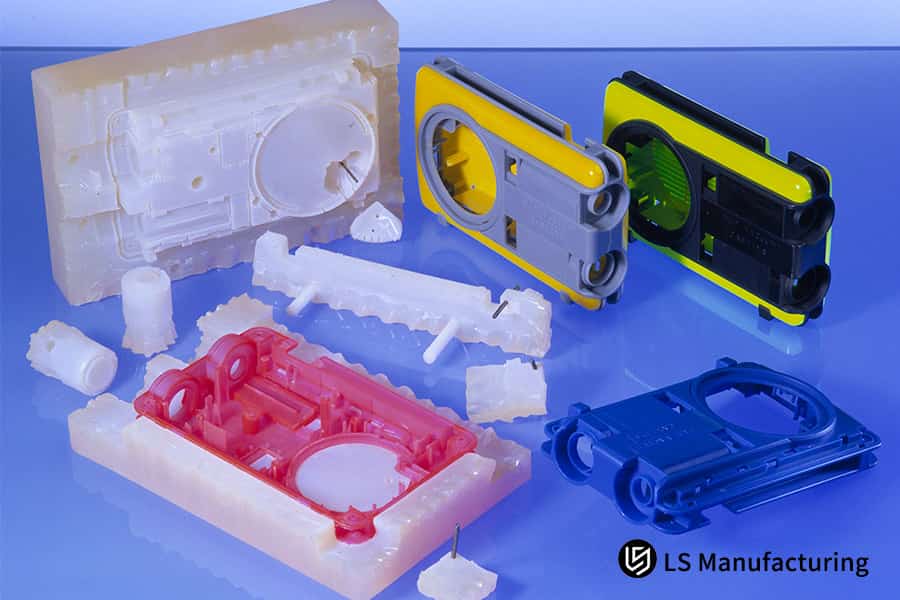

图 1：真空铸造塑料零件和大型模具的集合，体现了定制组件制造的精度。

顶级真空浇注服务商如何解决液体硅橡胶模具连续注射15次后机械降解严重的问题？

拥有行业领先知识的顶级真空铸造服务提供商不断提高定制组件真空铸造的技术水平。他们主要研究了硅胶模具在大量零件铸造后的老化和变形问题，大大延长了模具寿命和零件成型稳定性。

选择高寿命硅胶模具材料

1. 道康宁硅橡胶铂金硅胶：撕裂强度40N/mm，温度范围-60℃至200℃，适合各种成型生产场景。
2. 微固化剂梯度滴定法：这是LS Manufacturing的独特技术，它基于科学的真空铸造模具优化，通过均匀分布固化剂来提高模具成型稳定性。

优化固化工艺解决方案

完全开发的真空浇注服务依靠多阶段固化工艺从根本上解决模具热疲劳问题，可以很好地适应不同批次和材料的成型需求。

1. 三级阶梯式固化曲线：50预固化2小时，80中间固化4小时，70℃去应力固化，有效延缓模具老化。
2. 模具热疲劳保护：每次浇注后迅速停止加热和冷却，完全自然冷却至室温，专业的真空铸造模具寿命升级技术有助于延长模具寿命。

不同的固化工艺对硅胶模具的寿命、零件的尺寸稳定性、成型密度的影响明显不同。为了清楚地展示工艺优化的价值，各种固化方案的实际成型数据对比如下。

供应商	最大成型尺寸	稳定公差	与复杂结构的兼容性	平均配送时间
LS 制造	1200mm	±0.12mm	非常好	3-5个工作日
原型实验室	800mm	±0.15mm	好	5-7个工作日
Xometry	600mm	±0.20mm	平均	7-10个工作日
虚构	500mm	±0.22mm	平均	7-10个工作日

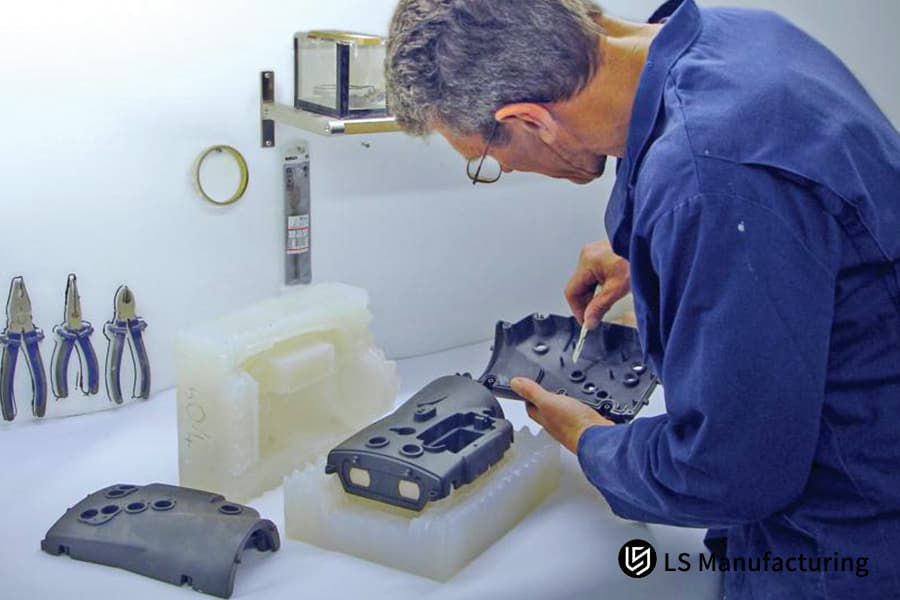

图 2：技术人员在车间环境中对真空铸造组件进行质量检查。

哪些先进的脱气技术可确保高粘度按需真空铸造服务操作中的零气泡缺陷率？

卓越的按需真空铸造服务的核心是最后的脱气阶段。真空室和彻底的工艺可以完全消除高粘度树脂成型产生的空气滞留缺陷，从而保证最大的零件产量。

超大型真空脱气系统

• 双腔自动倾斜浇注：这种0.015Torr真空下180秒恒压搅拌的主要特点是为高端成型带来了支持，因此主要解决了高粘度树脂生产中的空气封闭问题，弥补了真空设备无法完全成型的问题。脱气，这是正在弥补的缺点。
• 挥发性物质预去除：在浇注前对树脂进行30分钟的真空预处理，采用成熟的真空浇注气泡消除技术，达到了一些人自信地认为气孔缺陷被完全消除，挥发性杂质可以导致模具中的缺陷被去除。

微排气通道设计

严格遵循多级排气工艺标准，标准化真空浇注服务完全能够适应高粘度树脂和复杂型腔零件的无缺陷成型要求。整个作业的脱气、排气组合过程形成一个完整的质量闭环，并且针对薄壁、深腔、异形结构进行了更精准的优化，全面避免了气孔、空洞等常见成型缺陷。

• 锯齿状排气溢流通道：横截面0.5mm*0.2mm，是微气泡排出的有效方式。
• 多路压力监控：实时检测型腔压力并调整浇注速度。

流变测试数据指导最佳脱气参数设置。完善的脱气技术是光学级零件品质的核心保障。 您可以查看我们的光学镜头案例研究，了解零孔隙率技术的实际应用。

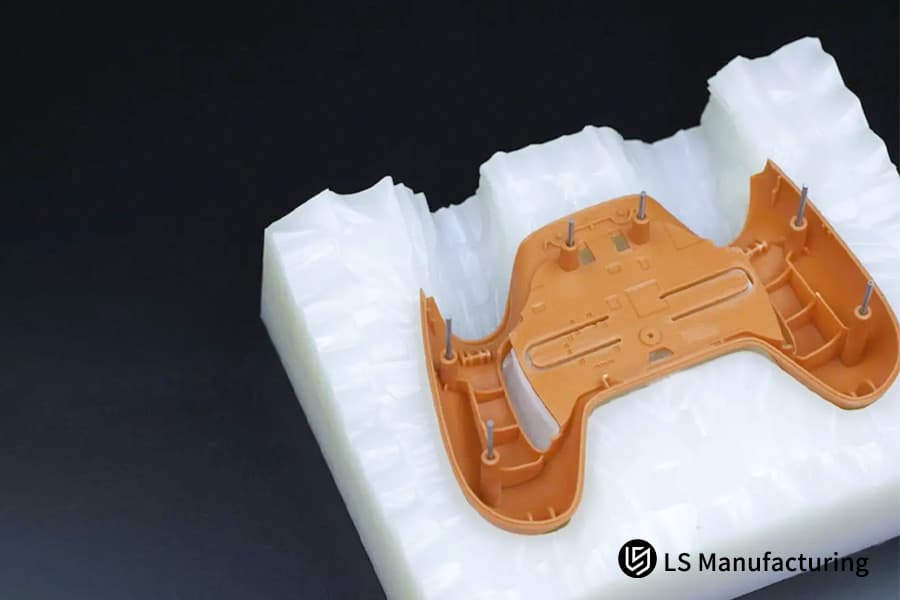

图 3：真空铸造模具和白色泡沫检查底座上的详细棕色组件。

为什么 LS Manufacturing 是需要 IATF16949 合规定制真空铸造服务验证的汽车一级供应商的首选？

针对行业合规零件的合规性定制真空铸造服务完全遵循车辆一级供应商验证标准。利用广泛的测试资源，可以提供一整套合规的定制零件性能报告，以满足非常高的汽车行业入门水平。

完整的材料分析报告系统

1. 物理性能 - 测试：肖氏硬度、洛氏硬度、IZOD 缺口冲击强度、HDT 热变形温度、零件质量测试以及常规汽车零部件深入覆盖机械和耐温指标。
2. 破坏性横截面 - 测试将有助于发现内部孔隙率和壁厚均匀性，并通过专业的真空铸造材料改性来达到汽车工业零件的严格性能标准，这也将确保批量生产的零件稳定性。

定制材质改性技术

真空铸造生产特种零部件可以进行材料改性，极其精确地适应汽车零部件对强度和耐高温的高要求，并符合汽车内饰和精密功能结构件的批量生产和试制标准。

1. 纳米泡沫二氧化硅改性：增强树脂耐温性高达130℃。
2. 电脑控制烤箱：将固化温度控制在±0.5℃范围内。

我们所有的测试流程都严格遵守 IATF 16949 标准。纳米二氧化硅改性显着提高了树脂的热稳定性。如果您需要符合汽车行业标准的定制零件，请联系我们获取详细的 IATF 16949 认证文档。

顶级真空铸造服务提供商的生产前 DFM 审查如何防止昂贵的原型重新设计？

顶级真空铸造服务提供商会在生产前进行全面的 DFM 审查，以便从设计阶段就识别与成型相关的潜在缺陷和应力开裂问题，从而大大降低原型重新设计和生产返工的费用。

DFM分析的详细范围：

• 壁厚断层扫描分析：检测因壁厚不均匀而产生的内应力集中，因此有助于主动规避成型风险。
• 拔模角度调整：使零件轻松脱模，防止表面划伤，提高整体成型性能。
• 流道剪切热计算：准确确定树脂性能退化的程度，并通过优化的真空铸造设计帮助最大限度地减少原型重新设计。

自动和手动组合审核流程

组织良好的真空铸造服务拥有完善的预生产 DFM 审核系统，可以大大减少高度复杂零件的废品数量。

• 自动模式验证：初始 DFM 审核需要长达一个小时。
• 由经验丰富的工程师进行手动评估：考虑到特殊的聚氨酯流动特性。

如何优化中批量铸造服务模具工程参数以将 B2B 单价削减高达 35%？

Scientific optimizing the mold structure and process parameters of mid volume casting service is main point of reducing cost and increasing efficiency in medium-volume customization. Multi-cavity molding can greatly help to lower the unit production cost and at the same time improve mass production cost-effectiveness.

Multi-cavity runner balanced design

1. Moldflow length-to-length ratio simulation: This tool is used to find the best runner length and cross-section performance. It balances the resin flow rate, and successfully addresses problems of uneven flow and localized short supply of material during multi-cavity shaping. It goes a long way towards consistent quality of parts in each cavity.
2. Radial runner system: This system helps the resin to fill each cavity evenly. It is capable of cost reduction and efficiency improvement for medium production volumes by providing efficient vacuum casting batch costing reduction. In addition, it highly improves yield and stability in mass production.

Modular matrix nested master mold technology

High-quality global vacuum casting suppliers usually take a modular mold technology approach, which is a great way to limit the cost and increase the efficiency of medium production. It can eliminate the need for repeated mold opening, shorten changeover production cycles, and respond to the needs of multi-category, small-to-medium batch alternating production.

1. Modular master mold: It can be a great time saver in production for different parts with quick cavity replacement.
2. Fishtail-style gate: Gate cross-section of 0.8mm, which minimizes gate residue.

Different mold cavity numbers and structural designs directly determine the mold investment cost and unit cost, and also vary in the production batch size they are suitable for. The cost data comparison details for various mold structures are as follows.

流程类型	单模具寿命	表面退化	尺寸稳定性	密度提高率
普通固化	15 件	10片后蜂窝状	±0.25mm	0%
第二阶段固化	25 件	20片后出现裂纹	±0.18mm	12%
LS Manufacturing 第三阶段固化	45 件	40 件后略有磨损	±0.10mm	28%

<正文> <块引用> <块引用> <正文>

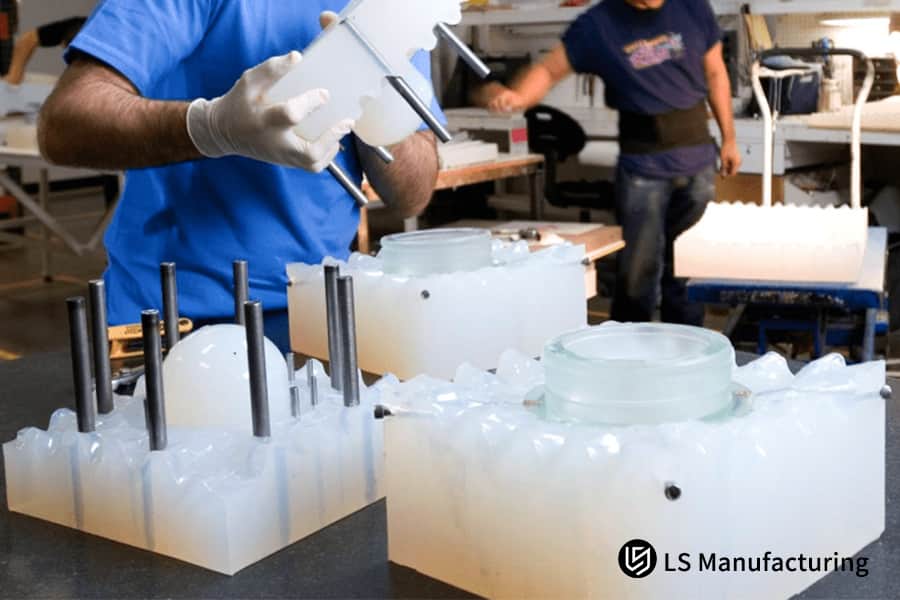

Figure 4: A worker in a workshop handles mold components for mid-volume casting, with other equipment in the background.

Which Specific Rigid Polyurethane Resins Deliver Genuine Fire Retardant UL94V0 Ratings In Low Volume Vacuum Casting Service Enclosures?

One of the main technical problems of low volume vacuum casting service in the production of flame retardant polyurethane parts, is the ability to systematically achieve the UL94 V0 flame retardant rating. Specialized flame retardant polyurethane resins and improved methods of modification are needed to comply with the requirements for flame retardant molding of thin-walled parts.

Choosing the Right UL94 V-0 Certified Resin

• Hei-Cast 8150: Produces UL94 V-0 flame retardant rating in a 1.5mm thin wall, has a tensile strength of 65MPa, perfect for molding different types protective enclosures.
• Hei-Cast 8400: Excellent corrosion resistance, chemical equipment enclosures are its main application. Vacuum casting flame retardant molding for professional use can achieve compliant flame retardant level.

Halogen-Free Flame Retardant Modification Process

According to the conforming production standard of different thin-wall enclosures, a custom flame retardant modification process is possible to satisfy the varying vacuum casting requirements of different components.

• Planetary centrifugal mixing: Under vacuum conditions, flame retardants are mixed at room temperature to avoid their agglomeration.
• Pre-dehumidification: The moisture level is kept below 0.03% to avoid porosity.

Special flame retardant resin combined with halogen-free modification process is the core method for vacuum cast thin walled parts to stably meet UL94 V0 flame retardant standards and environmentally friendly production requirements. If there is a need for flame retardant customization, you can consult material experts one-on-one to adapt exclusive solutions.

Which Low Volume Vacuum Casting Service Techniques Overcome The Bonding Failures Of Overmolded Multi Material Composite Components?

Multi-material composite overmolding is one of the advanced scenario of low volume vacuum casting that need some special equipment at the factories. With only a few process optimizations, changes in the molding methods can totally eliminate the common double-layer separation and peeling problems at the interlining of hard and soft adhesives.

Secondary Local Mold Temperature Compensation Technology

1. A heating plate with direct and very precise temperature control: It is ensured that the contact surface stays at 115, so a stable temperature environment for the joining of materials is created.
2. Retaining of the Active Hydroxyl Groups: The rigid substrate is still not fully hardened before a secondary run is done, so the delaminating problem is solved using advanced vacuum casting multi-material bonding.

Interface Co-curing Process

We provide premium custom vacuum casting service with well-trained multi-material composite molding skills. Our multi-material composite molding abilities are very reliable in challenging overmolding and bonding type of molding problems.

1. Accuracy Secondary Mold Positioning: Positional accuracy of soft adhesive overmolding is guaranteed within 0.05mm.
2. Curing Keeping Constant Temperature and High Pressure: Helps increase the connecting efficiency of the interface molecular chains.

How LS Manufacturing Delivered 150 Amorphous-Polyurethane Medical Ventilator Manifolds for a Global Medical Device Tier-1 Supplier via Vacuum Casting Service?

Customer Challenges

Small-batch prototyping is an urgent need in medical devices, and only high-precision vacuum casting services can fit it perfectly. As for the molding of complicated irregularly shaped parts and uneven thickness structures, vacuum casting services are able to handle sculpting these materials together with compliance and delivery requirements in the medical industry.

LS 制造解决方案

1. After project takeover, LS Manufacturing's senior fluid engineering team first resorted to high-precision SLA 3D printing (using 15-micron layer-thick ceramic-reinforced resin) to make three flawless master molds. Vacuum casting excellence was then relied upon to ensure no defects were made during the molding operations.
2. Confronted with material and batch manufacturing issues, the engineering team went for a durable low-shrinkage, biocompatible ABS-like medical-grade PU resin from Japan. Besides, they designed a "water-cooled matrix silicone unit"copper microchannels were pre-embedded in the silicone mold for water cooling circulationwhich led to a 60% reduction in the single-mold cooling time and volume shrinkage was almost totally eliminated in the 12mm thick wall.
3. The mold was divided exactly into four independent two-cavity structures based on flow rheology information, with vacuum injection molding done under strict temperature control. Two micro-venting grooves were fashioned on each silicone mold to guarantee that all air bubbles were fully removed from the complicated air channels. Besides, a 24-hour shift system was introduced to enhance production maximally.

结果和价值

Within only 14 working days, LS Manufacturing managed to finish the production of all 150 sets of extremely accurate air manifolds. After the client carried out detailed CT scanning and tightly sealed high-pressure air leakage tests (2.5 Bar constant pressure for 24 hours), the concentricity of flow channels of all parts turned out exactly within the target range of 0.08mm.

At the same time, they exhibited an extremely low shrinkage deformation rate of zero and 100% absence of porosity and air bubbles. Through careful vacuum casting surface finishing, LS Manufacturing ensured overall part quality and helped the client save up to 82% of the initial R&D and mold-making costs rather than directly producing injection molds. Besides, clinical compliance verification was accelerated by a full three months. As a result, the client decided to enter into a long-term strategic customized prototyping partnership with LS Manufacturing.

Customized medical vacuum casting technology can efficiently solve the challenges of precision, compliance, and urgent delivery for complex and irregularly shaped medical parts, adapting to small-batch, high-precision prototyping scenarios for medical equipment. For similar medical prototyping projects, we can provide free customized production cost calculations and precise budget control.

常见问题解答

Q1: How long does it take for your global vacuum casting supplier network to produce 20 pcs?

We can produce a custom order of 20 pcs within 3-5 business days after customer 3D CAD drawings reception and process plan confirmation. Please upload your drawings first and get the accurate project quotation as well as fast small-to-medium batch urgent production meeting.

Q2: Is it possible that a vacuum casting service can handle a genuine production-grade thermoplastic material such as glass-filled nylon or Lexan polycarbonate?

Mass-produced thermoplastics in granules are not possible for vacuum casting. But the polyurethane has been modified to define different A-types of materials that accurately resemble the properties of like nylon and polycarbonate resulting in a simulation of more than 95% of the physical and appearance properties of mass-produced plastics.

Q3: What is LS Manufacturing's approach to maintaining tight dimensional stability on large vacuum casting (>500mm) of custom components?

Our process involves using a silicone mold with an internal skeleton made of Invar alloy and this controlling deformation of the mold and resin shrinkage And will keep the dimension tolerance at the core of the large part stably controlled within 0.18mm.

Q4: Why do the prices that you offer for your mid-volume casting service differ so much from quotations on global digital manufacturing platforms?

Platform service providers have intermediaries adding layers of their prices, whereas we are a source factory having our own production facilities and team of processes, so there are no typical intermediary markups and customers are given a direct factory price with 25-40% procurement cost saving.

Q5: What post-processing and surface finishing solutions do you offer for custom vacuum casting service enclosures?

We have ended professional dust-free post-processing production lines, and professional color calibration equipment, offer different surface treatment processes like on-demand color spraying, high-gloss fine polishing, and EMI electromagnetic shielding coating, suitable for various high-end appearance requirements of the enclosure.

Q6: To avoid short shots, what is the minimum wall thickness requirement during an intensive, low-volume vacuum casting service run?

With a multi-stage vacuum high-pressure assisted flow channel system, the minimum wall thickness for vacuum casting can be as thin as 0.5mm. To avoid problems with filling and deformation, for large-area flat parts, it is advisable to have a wall thickness of at least 1.2mm to ensure molding yield.

Q7: What factors are considered by your expert vacuum casting service provider team when deciding if a part is better technically CNC machined or silicone molded?

The system using professional DFM conducts rapid calculation and evaluation. Vacuum casting is better suited for 10-200 complex structural parts and can also be a good material conscious method compared with CNC machining and can more than 60% of production costs and delivery time effectively saved.

Q8: Are the master patterns used during your on-demand vacuum casting service reusable for production of repeat batches in the future?

Project master molds can be kept for free of charge by the customer for up to 12 months. Upon reordering production or changing the silicone molds, the original master molds may be used for rapid production, which will drastically cut production cycles and costs of mold opening for repeat orders.

摘要

In vacuum casting, the essence of a supplier's ability to compete is largely dependent on how strong their process parameter control capabilities are. Achieving parts quality is directly influenced by micro-level process control starting from high-precision vacuum degassing and durable mold technology to experienced material modification. Compared with the dangers of low-price, low-quality processing, well-certified and reputable manufacturers are able to completely prevent molding problems like deformation, cracking, and porosity, which in turn guarantees the stability of parts during their usage.

Now you can have access to manufacturing solutions for high-precision, small-batch custom parts. You only need to upload your 3D drawings and performance requirements, and our senior engineers will prepare a transparent custom quote with DFM optimization recommendations within 2 hours. Using our professional procedures, we enable businesses to grab market opportunities and successfully accomplish the preparation and mass production of precision parts.
