Precision Metal Stamping Services: High-Volume Custom OEM Part Manufacturing

Precision metal stamping services allow OEMs to meet their requirements of micron levels of precision with controls for mass volume production, through LS Manufacturing we can provide such services to meet OEMs' pains of high volume stamping precision deviation with a 0.01mm in precision, and help OEMs reduce your Total Cost of Ownership (TCO). In high volume OEM, micron precision variation can be magnified and resulting in aggregated large volume scrap, which is your biggest pain point.

Most of the articles ignore thermal stress management and progressive die stability are the critical to TCO. LS Manufacturing will explain how to achieve stable mass production with 0.01mm specification with this service.

Precision Metal Stamping Services Core Answer Quick List

Customer Benefits	Solutions	Key Data	Customer Benefits
Insufficient Die Stability	Carbide + PVD Coating + Thermal Compensation	Cpk > 1.33	Achieve part consistency, reduce scrap
Springback Issues with Ultra-thin Materials	Multiple Pre-bending + Leveling Process	Flatness ≤ 0.05mm	Improve part precision, avoid rework
High Material Costs	Nested Layout + DFM Optimization	Material Utilization ≥ 85%	Reduce unit cost, save budget
High Volume, Low Efficiency	Multi-station Progressive Die + Automation	Production Cycle Shortened by 25%	Increase Capacity, Accelerate Delivery

In our article, the precision metal stamping services with the case studies and data may be used to address OEMs' high volume metal stamping precision and cost pain points, which will enable them to optimize their supply chains and gain additional market competitiveness.

Why Trust LS Manufacturing For Precision Metal Stamping Services? High-Volume OEM Manufacturing Experience

The main factor in selecting a metal stamping supplier is precision stability for large volumes. That's the core value when choosing LS Manufacturing. For decades of experience in high volume stamping and working with the best OEMs, LS Manufacturing will give you peace of mind in a mass production environment by utilizing the right technology and data to address your precision and cost concerns. No concern of mold breakdown. The molds from LS Manufacturing are IATF 16949:2016 compliant, with ASP 23 carbide utilizing PVD coating.

Together with nymber of tonnage monitoring, punch wear is decreased by 60%, which keep costs of mold lower, stop production from disruption, and let the mass production being seamless. Total Life Cycle Engineering quickly saves you money and time. As part of our life cycle engineering support we complete DFM in 24 hours so you can get your project back on track sooner, we delivery 99.5% of our projects on time so you aren't left waiting. For example, one OEM customer was a considerable financial loss due to micro cracks in their parts, one of our fully tailored solution completely solves the problem save you $150,000 annually in further losses.

Additional, we are comply with ISO 9001:2015, we tailored management to ensure consistent management in the whole process, to meet your high-end needs, to improve your supply chain competitiveness and become your core supply chain partner.

If you are struggling with precision or cost issues in high-volume metal stamping, contact our senior engineers for a free DFM technical assessment to quickly understand how to achieve stable mass production and cost optimization.

Why Does Mold Stability Define Part Consistency In High Volume Metal Stamping?

In high volume metal stamping, mold stability directly determines part consistency. Mold wear or deviation can lead to batch scrap and increased costs. Simply put, mold stability is the customer's cost control line and is key to achieving high output and high precision.

Selection Logic of Carbide Materials and PVD Coatings

1. The custom metal stamping service allow customers to select ASP 23 carbide punches which have a hardness of HRC 64-66 and provide more than three times the wear resistance of standard high-speed steel, which results in lower punch wear.
2. The 2-5μm PVD coating reduces the coefficient of friction between the punch and the material, which produces less heat during stamping and prevents thermal expansion from reaching dangerous levels.
3. The material and coating combination provides effective mold life extension, which results in less frequent mold replacements and decreased costs for mold acquisition and replacement.

Application of Thermal Compensation Technology and Tonnage Monitoring

The stamping process experiences dimensional changes because of mold friction heat in high-volume operations. Our team uses thermal compensation technology to monitor and adjust parameters as we operate, which helps maintain stamping dimensions within Cpk > 1.33 limits. The tonnage monitoring system detects tonnage anomalies, which enable it to issue early warnings about mold failures that result in production waste.

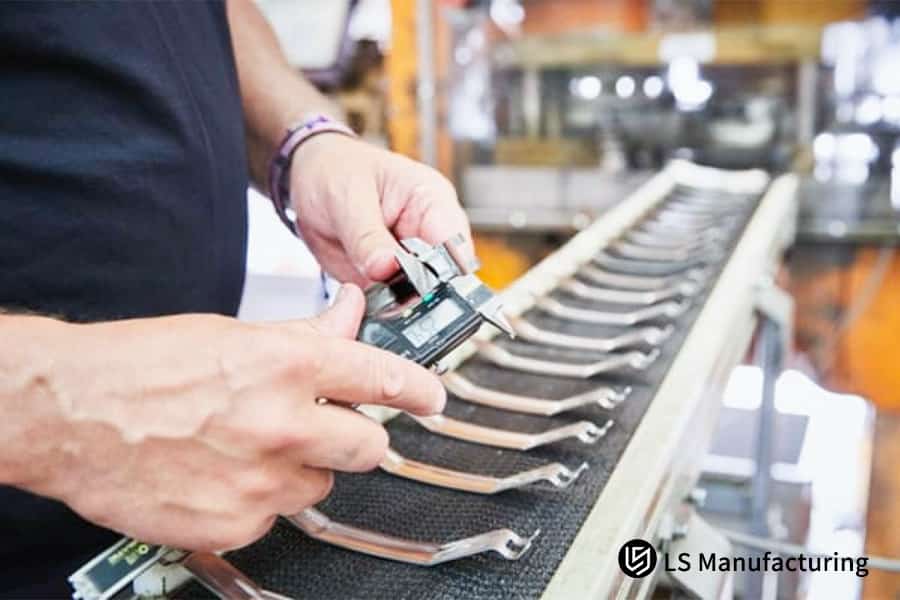

Figure 1: Measuring metal stamping parts with a caliper for quality control.

How Does Precision Stamping Service​ Balance Rebound & Flatness For Ultra-Thin Materials?

During the precision stamping service for 0.1mm~0.5mm ultra-thin materials, springback and flatness problems often occur.

If not handled well, the parts may not assemble and rework cost can be increased. With the scientific process optimization, we afford high precision parts for our customers.

Mathematical Modeling and Application of Springback Compensation

• For the various ultra-thin materials you select, LS Manufacturing would draw up a special mathematical model of springback compensations to precisely analyze the core parameters including the elastic modulus and yield strength of material.
• During die design stage, an accurate spring back calculation with the model gives compensation space to be planned in advance, so that no deviation in parts dimension will result from the stamping process.
• Effective die design considering material characteristics will reduce the stamping stress concentration thus to minimize the impact of springback and maintain part dimensional accuracy.

Progressive Die Design and Process Optimization

For progressive die design, several pre-bending and pre-leveling procedures are utilized to successively alleviate the internal stress of the material. With a finely controlled oil mist lubrication system to minimize the friction, flatness of the work piece could be maintained within 0.05 mm.

Processing Method	Flatness (mm)	Heat Affected Zone (mm)	Applicable Output (pieces/month)	Cost (USD/piece)	Surface Roughness (Ra/μm)	Applicable Material Thickness (mm)
Precision Stamping Service	≤0.05	None	100,000-1,000,000	0.12-0.35	≤0.8	0.1-1.5
Laser Cutting Service	0.10-0.20	0.3-0.5	1,000-10,000	0.80-1.50	1.2-2.0	0.1-2.0
Ordinary Stamping	0.20-0.35	None	50,000-300,000	0.25-0.60	1.0-1.8	0.5-3.0
Waterjet Cutting	0.15-0.25	None	500-5000	1.50-3.00	1.5-2.5	0.3-5.0

Compared to laser cutting service, precision stamping service offers higher precision, no heat-affected zone, and lower cost in high-volume processing of ultra-thin materials. For those with ultra-thin material stamping needs, please download our white paper to learn about the details and advantages.

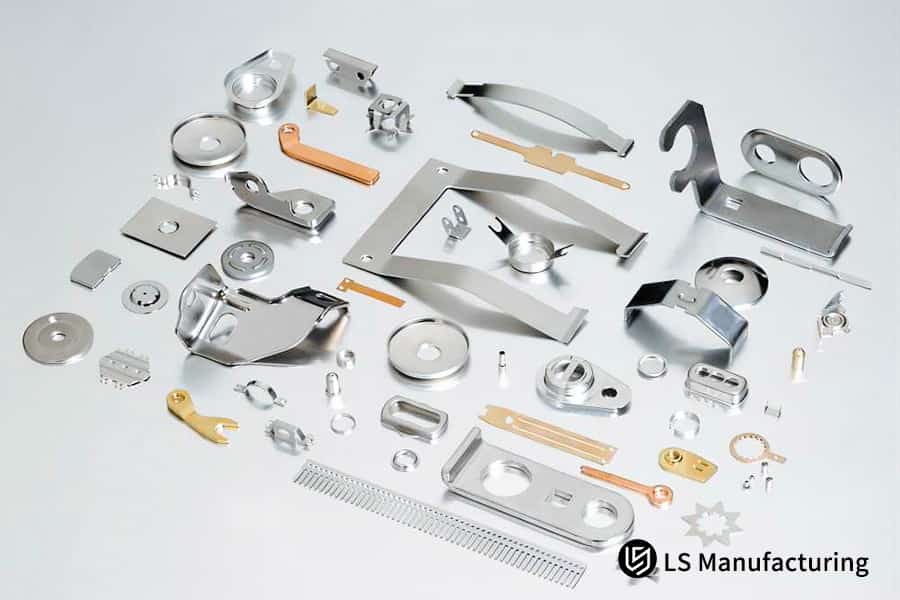

Figure 2:​ Display of precision stamped metal parts in various shapes and finishes.

How To Save Material Costs During DFM Optimization In Custom OEM Stamping Process?

Material costs in custom OEM stamping account for over 60% of the total part cost. Improving material utilization through DFM optimization is a core aspect of our cost reduction efforts for our clients.

Practice and Data of Nesting Optimization

We use real-world data to demonstrate the value of nesting optimization. Below is a detailed comparison of traditional nesting and nesting optimization:

Nesting Method	Material Utilization	Material Consumption per Unit (g)	Material Cost per 100,000 Units (USD)	Cost Savings	Mold Wear Rate (%/100,000 Units)	Production Efficiency (Units/Minute)	Applicable Part Complexity
Traditional Nesting	65%	12.8	4800	0%	8.5%	35	Simple-Medium
Nesting Nesting	85%	9.8	3675	23.4%	4.2%	48	Medium-Complex
Interlaced Nesting	78%	10.9	4088	14.8%	6.3%	42	Simple-Medium
Optimized Nesting Nesting (DFM Enhancement)	88%	9.2	3456	28.0%	3.8%	52	Medium to Complex

Specific Implementation Recommendations for DFM Optimization

1. Re-tuning the part edge radius (R-angle) to approximately 0.2mm-0.5mm will bring about a 30% lower in mold stress, a 20% increase in mold life and a reduction in unit cost in mold amortisation.
2. Part structure optimization to eliminate excessive complex shapes and minimize number of stamping stations can save mold development and maintenance expense.
3. Optimizing part design in advance can shorten the quotation cycle of OEM metal stamping service, allowing you to advance projects faster and seize market opportunities.
4. Integrate simultaneous material utilization planning with nested layout optimization during DFM stage to improve material usage and even save material cost.

What Standards Must Precision Metal Stamping Services​ Meet For High-Precision Industries?

The world-class standards is applied for high precisions industry. Accurate test is a rigorous standard for precision metal stamping services. Quality control is ensured the parts are robust and safe, which is the vital aspect to win a customer.

100% Online Monitoring Process and Vision Inspection System

• The installed vision inspection system offers-accuracy of 0.005mm in by bringing to light punches misalignment and dimensional tolerance in accuracy of metal stamping service.
• Online monitoring 100% online monitoring prevents defect parts from entering the next process avoiding you from future assembly malfunction and rework costs.
• By applying the 2-D measuring tool in X-bar R Chart analysis, we observed the variation of dimensional characteristics of parts in time, so we're able to response in time to most modifications in the stamping process.
• Fully compliant with IATF 16949.We created a testing traceability system which supports all parameter traceability as well as takes accountability for each batch of parts to come with a full testing report, in order to satisfy industry compliance demands.

Specific Quality Control Parameters and International Standards Compliance

Dimension changes are monitored through a 2D gauge, IATF 16949 standards are followed, and a traceability system is in place. A fully documented inspection report is generated with each batch.

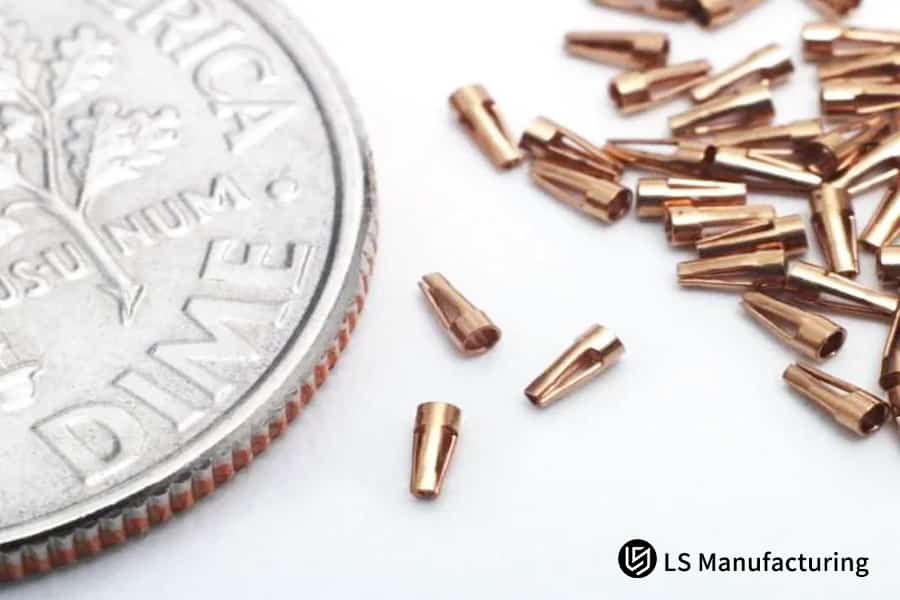

Figure 3:​ Coin shows scale of tiny metal stamping parts.

How To Cut Costs & Boost Efficiency Via Progressive Dies In High Volume Stamping Service?

The two most basic requirements for high volume stamping service is high output and low cost. High-speed multi-station progressive dies or single stamp die which should be selected directly affects the efficiency and cost output. Proper selection is an important means of cost saving.

Economic Balance Point Analysis of Progressive Dies and Single-Stamp Dies

Our test data shows that the economic balance point between progressive dies and single-stroke dies is 100,000 units: single-stroke dies are more cost-effective for orders below 100,000 units, while progressive dies with 20 or more stations are used for orders above 100,000 units. Although the initial investment is higher, it can reduce costs and increase efficiency.

Practice of Automating Integration and Eliminating Processes

We used an automatic feeder incorporating internal die tapping capabilities to combine secondary metal working operations into one stamping operation.

By eliminating multiple operations per cycle in the stamping process, this improvement decreases production cycle time by 25 percent and decreases labor cost by 30 percent.

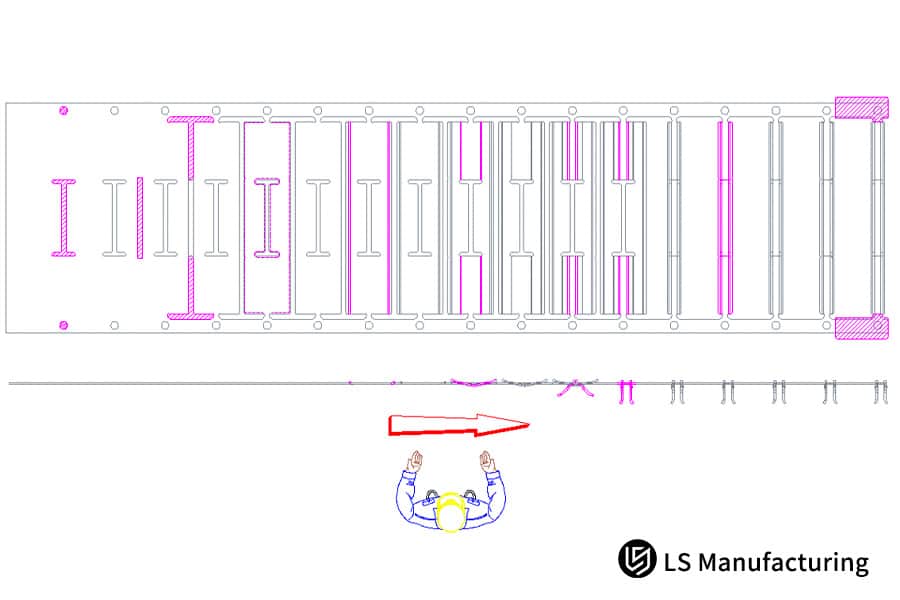

Figure 4:​ High-volume stamping line with multiple dies, top view.

How To Prevent Mold Accidental Damage Through Sensor Integration In Precision Stamping Service?

In high-frequency work of precision stamping service, unintentional die damage may result in production halt, delivery delay and profit losing. Fault warning and early loss mitigation is realized by the smartly deploying sensors.

Selection and Installation Logic of Core Sensors

We install fiber optic sensors at important points of several progressive dies to detect the feeding status (by using fiber optic sensor) and the change of the die clearance (by the displacement sensor), thus suppress high-frequency faults, like feeding deviation and scrap jumping.

Implementation of Anomaly Monitoring and Automatic Shutdown

Transmits data in real time from the sensors, and automatically power cut off in millisecond.Any abnormal displacement out of 0.02mm or non-fed condition will be accurately monitor and shutdown system automatically. Ensure against core dead die and avoid accidental cut off at the source.

Sensor integration can extend mold life, ensure continuous production, and reduce downtime losses. To learn more about our precision stamping service's intelligent mold solutions, please download our maintenance manual.

Case Study: LS Manufacturing Customizes Precision Stamping Solution For Stainless Steel Shielding Covers In The Medical Device Industry

Through our custom metal stamping service, we have compiled a lot of successful examples in high-precision fields. Our stainless steel shielding cover stamping project for medical products can be viewed as an ideal example to illustrate our competencies in tackling difficulties and generating value.

Customer Challenges

One of the top 3 worldwide medical device OEM encountered two of their major problems when manufacturing 0.15mm SUS304 shields covers of 2mm width: pop-up micro-cracks at the bending points led to EMI non-compliance (now a 12% PCB interference rate), and the current supplier simply could not reproduce a consistent cover at 1 million units/month production quantity (scrap rate at 8%, cost increased exponentially).

LS Manufacturing Solution

After our intervention, we first conducted DFM analysis on the parts and found that the core cause of microcracks was the concentration of single bending stress, while the poor consistency was due to insufficient mold accuracy and unreasonable processes. We have taken a series of optimization measures to address these issues:

1. Process Optimization: We replaced the one step bending process with a three stage progressive bending process to gradually release the internal stress of the material to fully resolve the micro crack issue occurring at the bend site.
2. Die Optimization: We employed very fine-grain carbide dies with a micronized oil mist lubrication system which led to less die wear and resulted in tight part dimension control.
3. Inspection Optimization: We carried out 3D contour comparison with laser scanning of the first piece, to be able to the gap parameters of the stretching die to optimize 0.005mm, so as to ensure every part to be able to the accuracy.

Results and Value

Our solution totally alleviates customer pain: micro-cracks vanish, PCB interference rate is down to B0.1%, scrap rate is down to B0.5%, material utilization increases 18%, saving customer 150K/year, and conducting automated mass production 24/7 in dark factory.

No matter what complex custom metal stamping service challenges you face, we can provide customized solutions. Contact us now, submit your part requirements, and get a customized stamping solution and quote.

Why Choose LS Manufacturing For OEM Metal Stamping Service​ In Your Supply Chain?

The producer of a dependable OEM metal stamping service provider within the international competitive supply chain is high efficiency help minimize risk and boost competitiveness.

The exciting technological depth and asset-based services of LS Manufacturing are considered as for its core reasons.

Differentiated Advantage of Full Lifecycle Engineering Support

You can expect a wide range of full life cycle engineering support including fast and reliable DFM advice, 24 hour assessment and an on time delivery accuracy of 99.5%, getting your production schedule back on target.

Risk Control and Client Rights Protection

We value customer IP protection, sign strict confidentiality agreements, and adopt digital warehouse management to monitor inventory in real-time and control delivery cycles, reducing supply chain risks for high-value customers and becoming a reliable partner.

FAQs

Q1: The lowest level of accuracy tolerance of precision metal stamping services, is it possible to do it by LS Manufacturing?

Our molds are by high precision grinding machines, we can produce mass stability with critical dimensions are ranging from 0.01mm and local surface micro-position are 0.005mm, which can satisfy high precision area product demand.

Q2: How do you control batch consistency of your materials for high volume metal stamping ?

We only purchase raw materials from certified top steel mills and conduct spectral analysis and incoming inspection before storage to ensure batch consistency in material composition, hardness, and thickness.

Q3: If using custom metal stamping services to produce a new product, what is the average mold development cycle?

2-3 weeks for simple molds depending on mold complexity.4-6 weeks for complex progressive dies to be completed with T0 sample delivery and full dimensional report to speed up the launch of new products.

Q4: Does your whole custom OEM stamping process also provide surface treatment? Can you do one-stop service?

We can offer surface treatment like anodizing electroplating etc, all the external suppliers are carefully reviewed to guarantee the quality of processing.

Q5: For high volume stamping services, who is responsible if the mold is damaged during use?

If for the reason of stick wear, causing the mold life exhausted, we will remake a new one for free, which will greatly reduce the mold cost.

Q6: How can LS Manufacturing lower the initial investing cost for providing our precision stamping services?

We will optimize part structure, reduce work stations through DFM (Design for Manufacturing), and provide long-term mold cost sharing and reimbursement scheme to reduce the investment pressure from customers at the initial stage.

Q7: Is your OEM metal stamping service able to provide parts with high magnetic or high electrical conductivity?

We are experienced in working with special materials such as beryllium copper and satisfying magnetic requirements for high conductivity and magnetic requirements of parts by vacuum annealing.

Q8: How do I receive a quotation from LS Manufacturing now for precision stamping parts?

Upload 2D/3D drawings and indicated material, quantity, and tolerance needed. Engineering team will give you a technical evaluation and quotation in 24 hours.

Summary

In selecting any premium metal stamping services provider, the key point will be the level of control it is able to exercise over process details, from the micron-level compensation required by progressive die manufacture, through the thermal stability of the mass production environment, all make a difference.

With over 50 years of technology skills under our belt LS Manufacturing is can overcome difficult stamping problems and always be able to deliver quality parts and support ongoing cost down ideas even at high production volumes and supply the reliable core partner in your supply chain.

Ready to optimize your supply chain and make part perfection the norm?

Contact our senior engineers to upload a 3D model for free DFM evaluation and quotation. We can provide you with a seamless transition from prototype to mass production, starting your custom OEM stamping journey.
