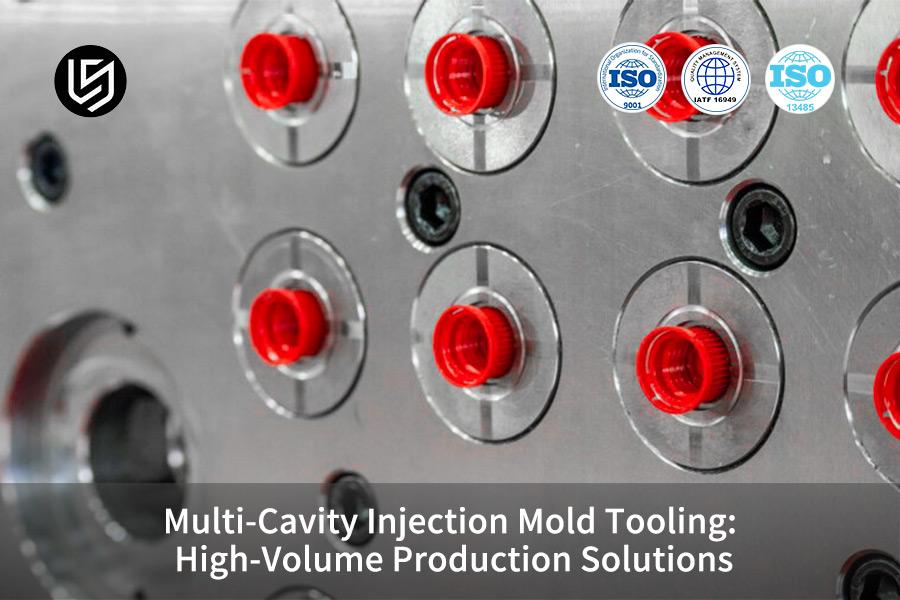

Multi-Cavity Injection Mold Tooling: High-Volume Production Solutions

Multi-cavity injection mold tooling are an essential foundation for high volume industries, such as medical devices and precision electronics, to get over the profit challenges.

With these, you can lower the price of processing one piece by more than half and at the same time decrease the cycle time by almost a third, which is a remedy for the problem areas of high cost and slow delivery that come with single cavity molds.

Qualified injection mold tooling services make sure that mass production is not only accurate but also stable. In this way, businesses can produce high precision, low cost products on a large scale.

Multi Capacity Injection Mold: Quick Overview Of Core Answers

Core Issues	Key Solutions	Core Benefits	Applicable Scenarios
High cost and low efficiency of single-cavity molds	multi-cavity injection mold tooling.	Unit cost reduced by more than 50%, efficiency increased several times.	Industries with annual output ≥ 100,000 pieces.
Uneven multi-cavity filling and insufficient precision	Optimized multi-cavity mold design + hot runner technology.	Cavity tolerance within ±0.005mm, scrap rate reduced by more than 90%.	Precision electronics, medical devices.
High mold maintenance cost and short service life	Modular design + high-hardness steel.	Stable for one million cycles, maintenance cost reduced by 20%.	High-volume long-term mass production projects.
Difficult scheme selection and unclear return on investment	multi-cavity vs single-cavity mold decision matrix.	Accurately match needs, ROI increased by more than 30%.	Various mass-production manufacturing enterprises.

Professional support and complete process services are essential if we want to operate a low cost, high precision volume manufacturing model.

Next, we will unpack the technological features and practical examples by mixing LS Manufacturing main strengths. We will then be able to offer injection mold tooling solutions that can be implemented immediately and help companies efficiently produce in mass volumes.

Why Trust LS For Multi-Cavity Injection Mold Tooling​ In Volume Manufacturing?

If you aim to produce millions of products your professionalism in injection mold tooling will be the main factor that determines your capacity and profits.

Through partnering with LS Manufacturing, you are not just receiving our technical support but converting them into measurable cost savings and efficiency improvement that will solely benefit you and be in line with your core needs for mass production.

A multi cavity mold your preference will be made under strict supervision of the ISO 13485:2016 medical device mold standard, which gives you the assurance of compliance and stability even in precision environments, thereby eliminating any concerns of compliance risks that may impact production.

LS Manufacturing has worked with more than 500 global clients in volume production helping them take material waste down by over 15% just by material runners optimization, reduce costs of individual units by as much as 38% besides controlling mold failure per million cycle to less than 0.1%, respectively.

With this, we have helped clients avoid production losses. In addition to other manufacturers, LS Manufacturing is capable of giving you the full injection mold tooling lifecycle servicefrom initial DFM review to post construction maintenance planning, that can aid you in lessening mass production risk and give you extra time and will for mold management.

Our engineering team has been in the industry for over 20 years, so we know exactly how to fix the main problems of multi-cavity injection molding, like not all cavities getting filled evenly and mold temperature control going off.

Each custom mold we create for you is IATF 16949:2016 automotive industry certified, making them ideal for your premium manufacturing needs.

By partnering with LS Manufacturing, you are effectively reducing the risks associated with mass production. Additionally, you can be confident that your investments in molds will result in increased production capacity, allowing you to stay ahead of your competition.

Whether you face single cavity mold bottlenecks or require customized high precision multi cavity solutions, contact our engineers for a free DFM assessment to accurately determine if your product is suitable for multi-cavity injection mold tooling, securing mass production benefits in advance.

Why Is Multi-Cavity Injection Mold Tooling​ Optimal For Low-Cost Mass Production?

When looking from a unit cost (CPU) point of view, multi-cavity injection mold tooling has a lot more benefits especially during the stage of volume manufacturing.

Single cavity molds cannot spread out labor and equipment costs and have a low production flow, on the other hand, multi-cavity molds can make several products at once, directly increasing production by a factor of several times.

Comparison of Cost Effectiveness between Single-Cavity and Multi-Cavity Molds

Below is a comparison of the investment return (ROI) of single and multi-cavity molds for an annual production of 1 million units. The data clearly demonstrates the cost advantage of the multi cavity solution:

Additional Cost Savings of Multi-Cavity Molds

Optimizing runner design is one of the ways to reduce material wastage by more than 15%. Therefore, customers that have annual production of about 1 million units can save almost $100,000 in material costs every year and thus gaining a price advantage in bidding.

Figure 1:​ Close-up of a complex multi-cavity injection mold tooling component with connected wires in an industrial setting.

What Core Parameters Determine Machining Quality In Precision Mold Tooling Service?

Micron-level precision control is really what precision mold tooling service are all about.

The following four fundamental technical parameters not only directly influence the processing quality and mass production stability of multi-cavity molds, but are also the major reasons for customers to select their partners:

Comprehensive Description of Main Technical Parameters

• Cavity Dimensional Tolerance: To achieve the uniformity of parts and precision elements of medical devices, the dimensional tolerance difference must be controlled max 0.005mm in multi-cavity molds.
• Pressure Balance Standard: Scientific principles for injection molding were used to conduct tests, ensuring that the difference in pressure of melt among cavities is kept at less than 5%, this helps in avoiding uneven filling and shrinkage of parts.
• Mold Steel Performance: S136 or H13 steel of hardness HRC 48-52 is selected, such steel along with the hardening process can keep the strength and toughness of the mold, even after millions of cycles, and mold life is more than 1 million cycles.
• Precision of Machining Equipment: Precision CNC (positioning accuracy 0.002mm) and mirror-finish EDM machines are used to make sure that the cavity surface roughness Ra 0.02μm.

LS Manufacturing addresses these parameters in its processes. Every custom injection mold tooling is subjected to three comprehensive dimensional inspections to guarantee the concordance of requirements with the customer.

In simple terms, these fundamental technical specifications serve as "accuracy guardians" throughout your mass production course.

They work together in controlling the mold inaccuracies up to the micron level so that every item you manufacture is based on the same specifications and quality standards, thus doing away with the expenses resulting from scraps and reworks due to lack of precision.

Figure 2:​ A flowchart detailing the injection molding process steps, from simulation to ejection, for multi-cavity molds.

How To Solve Uneven Filling Through Scientific Multi-Cavity Mold Design?

Uneven filling is the main reason why multi-cavity injection molding suffers from deviations in dimensions and warping of the parts. A scientific multi-cavity mold design together with hot runner technology can totally fix this issue.

Advantages of Hot Runner Systems

Hot runner systems are designed to reduce melt pressure loss and enhance melt distribution uniformly. With Moldflow mold flow analysis, we first change the gate size and location so that all cavities can be filled at the same millisecond, resulting in a consistency of more than 99.9%.

In other words, it's like giving each cavity its own "dedicated material delivery channel, " ensuring the melt is evenly and precisely delivered, preventing issues like incomplete filling in some cavities or overflow in others. This fundamentally avoids part dimensional deviations and warping, reducing scrap.

Thermal Balance Optimization in Multi-cavity Mold Design

Thermal balance compensation is one of the ways we deal with multi-cavity mold design. We change runner parameters so that there will be no filling speed differences. According to ASTM D3641-20, we will keep scrap rate below 0.1%.

If uneven filling is your difficulty in multi-cavity injection taking the scientific multi-cavity mold design is a solution, with the help of hot runner technology, it is capable of high-precision filling. If you are still finding it difficult to solve the issue of multi-cavity filling problems, refer to our case studies for individual solutions.

How To Choose Between Multi-Cavity Vs Single-Cavity Mold​ For High Production?

Deciding on multi-cavity vs single-cavity mold depends largely on production volume, size of the part, and budget. Below, you can quickly figure out what's the best option for you:

Main Factors for Choosing a Solution

The main concern when choosing a mold is how to balance upfront cost and ultimate profits.

Three major aspects must be looked at: yearly output volume sets the level of efficiency needed, size of part determines the maximum number of cavities, and money will limit the amount of initial investment. It is the combination of all these factors only that can work out the best solution.

Mold Selection Recommendations for Different Production Volume Scenarios

At first glance, the price difference between multi-cavity molds used for the automotive industry and other mass consumer goods is a whopping 60% - 200% higher than that of single-cavity molds.

However, the point where the cost per unit starts to favor multi-cavity molds is when the annual production surpasses 100,000 units, leading to considerable long-term cost savings.

So, making the decision between multi-cavity vs single-cavity mold is largely dependent on accurately matching it to the production volume and the size of the parts in order to achieve the highest level of profitability.

Figure 3:​ An infographic comparing unbalanced and balanced runner system layouts in multi-cavity injection molds.

How Can Professional Injection Mold Tooling Solutions​ Ensure Stability After Millions Of Cycles?

The durability of a mold after several million cycles is the primary factor that affects the uninterrupted production and the cost of operation. Expert injection mold tooling professionals can ensure the stability of a mold all the way through the process, thus preventing downtime profits.

Improving Mold Motion System Stability

When doing full lifecycle management of custom injection mold tooling, we mainly focus on two things:

• The slide and the ejection system use self-lubricating designs with wear-resistant coatings to guarantee that they will not get stuck even after millions of cycles.
• An optimized cooling circuit, together with beryllium copper inserts, increases cooling efficiency by 20%, thus helping to avoid mold overheating.

Enhancing Mold Cooling System Performance

The results of our internal experiments indicate that molds under our control still demonstrate an extremely low dimensional deviation of 0.008mm even after their undergoing millions of cycles, their lifespans are more than 1.2 million cycles, and this greatly lowers their maintenance costs and enables customers to be very certain when they delegate long-term mass production tasks to the molds.

Figure 4:​ A worker trims green plastic parts on a workbench in a factory, related to post-molding or mold maintenance.

How To Achieve Highest Cavity Consistency In Custom Injection Mold Tooling?

Cavity consistency lies at the heart of multi-cavity molds and is a main technical challenge for the custom injection mold tooling industry. As the number of cavities increases, it becomes exceedingly difficult to control consistency, and this is one of the main ways to judge the professional level of the manufacturer.

Complete Control over Cavity Machining Accuracy

Our precision mold tooling service implements full-process control from start to finish to achieve high-precision consistency:

• Real-time control of machining accuracy is performed through CMM online monitoring.
• The deviation of cavity size is controlled to be 0.003mm.
• We use a cluster machining mode to prevent positioning deviations resulting from multiple machining operations, and thus, for molds with 32 cavities and more, cavity consistency of over 99.9% is obtained.

Venting Solution for Multi-Cavity Molds

We accurately design the size and position of the exhaust groove, effectively solving the problem of multi cavity exhaust, avoiding the generation of bubbles during melt filling, further ensuring the accuracy and appearance quality of the parts, and adapting to various precision and multi cavity mass production needs.

How To Effectively Reduce Maintenance Costs In Complex Multi-Cavity Mold​ Structures?

Complex multi-cavity molds are often neglected in terms of maintenance costs. A technical multi-cavity mold design can not only cut down maintenance costs at the source but also lighten the operational burden.

Maintenance Benefits of Modular Cavity Design

Our injection mold tooling systems are based on modular cavity design. When individual cavities get damaged, they can be replaced one by one, thus there is no need for an entire mold scrapping. You also save replacement costs and maintenance time, plus you avoid losses due to production line downtime.

Wear Parts Design for Longer Time between Replacements

Guidance systems are one of the main things that we improve. The use of high-precision guide pillars and guide sleeves is a good way to minimize wear during mold operation.

Highly hardened and wear-resistant materials are employed for the wear-prone areas to extend the life of the wear components and reduce the frequency of their replacements.

This multi-cavity mold design concept based on science not only significantly cuts down later maintenance costs but also reduces the running burden. If you want to learn more about design techniques that can help reduce mold maintenance costs, get our in-depth white paper with comprehensive solutions.

Why Is LS Manufacturing The Preferred Partner For Global High-Yield Injection Molding Projects?

Injection molding projects with huge volume requirements globally are setting increasingly high standards in terms of mold precision, output, and reliability.

LS Manufacturing has become the number one choice leading preference due to its all round capabilities. Their ability to totally serve customer needs results in getting the best value from injection mold tooling services.

Main Equipment and Technology Power Support

We have three major advantages:

• We are equipped with fully electric injection molding machines and five axis CNC machines, which are capable of making large molds with 64 cavities or more.
• Our main engineers have more than 20 years of experience which is one of the reasons that they can quite quickly find solutions to complex problems and also are able to design custom multi-cavity injection mold tooling solutions.
• We can arrange global logistics and export customization services to fit overseas production requirements.

Complete Service and Worldwide Delivery Assurance

We offer comprehensive injection mold tooling solutions. Our company has obtained IATF 16949 and ISO 13485 certificates and at the same time over 500 companies worldwide have recognized us as a dependable partner for large scale injection molding projects.

Our machinery, techniques, and full-service support can serve the needs of large scale injection molding projects entirely. Should you be in search of a trustworthy partner for mass production, our engineers are at your disposal for a separate project suitability evaluation.

Case Study: LS Manufacturing Customizes 32 Cavity Precision Sensor Housing Mold For Automotive Giant

For volume manufacturing, the precision and efficiency of multi-cavity molds are key factors that determine a client's market competitiveness.

This case study illustrates with visuals how we assist clients in addressing their mass production issues and creating value through professional multi-cavity mold design and precision mold tooling services.

Client Challenges

The client was a global Tier 1 automotive supplier who using 16-cavity molds to manufacture precision sensor housings, encountered two main problems:

• 8% of the parts featured pin diameter tolerances that were out of specification, leading to losses each month of almost $50,000.
• Furthermore, a cycle time of 28 seconds was not enough to satisfy the monthly delivery target of 2.5 million units, thus resulting in a risk of default.

LS Manufacturing Solution

After the client made the request, the engineering team at our company carried out a full Design for Manufacturing (DFM) evaluation first. Considering the features of the client's product, we changed the design of the multi-cavity mold and converted it to a 32-cavity mold. The main solutions are:

• Using a runner system with thermal balance compensation, and an optimal gate size finding through Moldflow analysis have been done to ensure that the pressure difference is less than 5% in the 32 cavities.
• Five axis CNC machining facilities have been used to achieve a geometric variation of 0.003mm in the 32 cavities, which is much better than the client's requirement of 0.005mm.
• A precision mold tooling service-level mirror polishing technique has been used to raise the surface accuracy and appearance quality of the parts.
• A beryllium copper insert has been included in the mold which upgraded cooling efficiency by 20% and shortened the cycle time.

Results and Value

Once the mold started production, the outcome was impressive:

• Cycle time was cut in half from 28 seconds to 15 seconds.
• Daily production raised dramatically from 30,800 pieces to 57,600 pieces, easily fulfilling monthly delivery requirement of 2.5 million pieces.
• Scrap rate was reduced from 8% to 0.05%, the customer saving over $48,000 in scrap losses monthly.
• Price per piece was lowered by 38% from $1.20 to $0.74, this way the customer was able to save around $580,000 annually.
• The delivery was done three weeks ahead of schedule which helped the customer to avoid the risks of default and at the same time strengthen their standing in the automotive supply chain.

This case fully demonstrates our delivery capabilities as a top custom injection mold tooling manufacturer. Whether you are facing issues such as uneven filling, tight delivery, or high costs, we can provide customized solutions.If you have similar mass production challenges, please contact us to obtain the complete case study white paper and refer to the adapted solutions.

FAQs

Q1: What is the approximate extra cost of multi-cavity molds compared to single-cavity molds for initial investment?

Usually the initial cost quoted for multi-cavity molds is 60% to 200% higher than the cost of single cavity solutions, depending on how many cavities there are and the level of precision required. However, it can slash the cost per piece by more than 50%, thus being more cost effective in the long run of mass production.

Q2: What techniques do you apply to large molds with more than 64 cavities to ensure balanced filling?

To accomplish this, we rely on expert multi-cavity mold design and Moldflow simulation. We can make minor changes to gate sizes and runner arrangements based on the results of dynamic pressure distribution analysis to ensure that the pressure difference of the melt in each cavity is less than 5%, resulting in a uniform fill.

Q3: Among mold steels, which one ensures the longest lifespan and the best price performance ratio for a high volume production line?

It would be best to go for steel S136 or H13 with a hardness of HRC 48-52 for a million cycles life. The main features of this steel are the wear resistance, stability of the dimensions, and the final result of reducing the maintenance costs, which altogether make it a very cost effective product.

Q4: How long does it usually take to receive a custom multi-cavity mold from LS Manufacturing?

Under normal circumstances, we will ship standard high precision multi-cavity molds within 6-10 weeks. When necessary, we can expedite production through 24/7 automated manufacturing lines allowing the shortest turnaround time of 4 weeks.

Q5: How do I know if a multi-cavity mold is the right solution for my part?

Generally, an annual volume more than 100,000 units and part dimensions smaller than 150mm will justify the use of multi-cavity molds as an effective way to increase productivity and lower unit cost. Feel free to contact us, we can do the compatibility check free of charge.

Q6: Will your Injection Mold Tooling service be accompanied by a complimentary DFM evaluation?

Indeed, apart from the price quotation instructions, customers receive a comprehensive DFM report that includes a professional review of the crucial design aspects recommended for mass production including draft angle and wall thickness uniformity.

Q7: Would production halt if one cavity of the mold is broken?

Not at all, thanks to the modular cavity architecture, it's possible either to seal the defective cavity independently or replace the insert rapidly even without scrapping the entire mold thus production won't be stopped due to one isolated problem which also helps minimizing losses.

Q8: Does LS Manufacturing support direct export of molds to overseas factories?

We have flexible delivery models worldwide. We can customize export molds according to international standards. Besides that, we have fully equipped manufacturing factories which ensure clients' overseas production needs can be met.

Summary

Opting for a highly productive multi-cavity injection mold tooling system is a major factor for firms to get over the hurdles of mass production, facilitate their growth on a large scale, considerably shorten production cycles, decrease costs, and enhance the yield of parts.

LS Manufacturing focuses on customer revenue and clears production barriers for customers through precise multi cavity mold design, strict processing control, and full lifecycle injection mold tooling solutions, transforming mold investment into production capacity advantages.

Request now a professional price and DFM check! Don't let old mold technology be the reason for delayed delivery.

No matter if you require a mass production partner or a customized injection mold tooling solution, our experienced team will be happy to help you. Send us your 3D files to get a tiered price and DFM optimization report in 24 hours.
