Eliminate seamless enclosure manufacturing bottlenecks with advanced multi-station deep draw technology. Upload CAD files for rapid DFM evaluation and transparent tooling pricing, delivering high-depth, defect-free metal components.
Get an instant quote today.
Get instant pricing, project lead times, and DFM feedback
STEP | STP | SLDPRT | STL | DXF | IPT | X_T | X_B | 3DXML | CATPART | PRT | SAT | 3MF | JT files
File size: ≤15MB
Trusted by Engineers and Purchasing Leaders at the World's Most Successful Companies
15+
Years in Business
250,000+
Custom Part Designs
2000+
Customers Served
99.8%
On-time Delivery
5
Industry Certifications
Engineered to resolve wall-thinning, wrinkling, and fracture risks, our deep draw process delivers seamless, high-depth enclosures with precise wall thickness consistency and superior structural integrity.
From initial DFM tool simulation to full-scale production, we process stainless steel, aluminum, and alloys, maximizing draw ratios while eliminating secondary seam welding and extra processing steps.
We engineer zero-leak deep drawn components for demanding automotive, medical, aerospace, and energy sectors, where extreme pressure resistance and strict dimensional repeatability are required.
Deep draw stamping is a precision forming process that transforms flat sheet metal into seamless, deep-cavity hollow components. Essential for airtight canisters, pressure vessels, and enclosures, this process offers high strength-to-weight ratios and smooth surface finishes. LS Manufacturing specializes in custom deep draw solutions that lower unit costs, eliminate assembly joints, and ensure long-term structural reliability for high-volume requirements.
Eliminate structural defects, material tearing, and costly secondary machining with our advanced deep draw stamping engineering. From high-precision enclosures to seamless tubular components, we deliver tight tolerances, exceptional wall uniformity, and dependable lead times for your most critical OEM production runs.

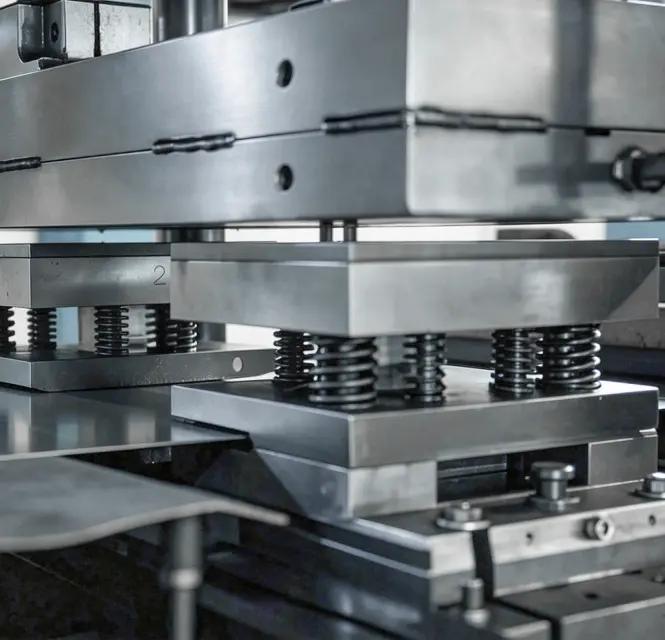

Overcome wall-thinning and wrinkling challenges when forming deep metal shells. Our multi-station transfer presses carefully control material flow to produce seamless cylindrical containers and high-strength housings. Ideal for automotive fuel systems, HVAC components, and industrial pump assemblies requiring zero-leak reliability.
Get a Quote

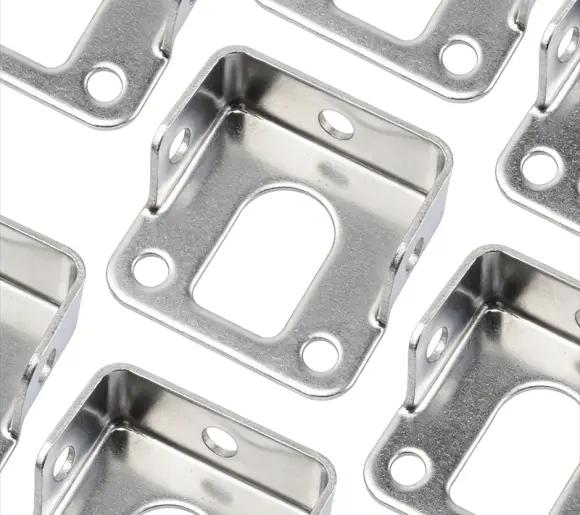

Eliminate weak welded seams and excess assembly costs for electronic shielding and sensor cases. We utilize precision tooling and multi-stage drawing to craft intricate rectangular enclosures from stainless steel, aluminum, and brass. Perfect for harsh environments where structural integrity and EMI protection are essential.
Get a Quote
Solve micro-cracking and wall-variation issues in small, tight-tolerance deep drawn components. Our ultra-precise tooling systems maintain exceptional dimensional consistency for miniature sleeves, battery cans, and valve bodies down to sub-millimeter scales. Tailored for medical devices, aerospace sensors, and micro-electronics.
Get a Quote
Avoid the high cost and stress-corrosion risks of traditional tube machining and welding. Our specialized progressive deep drawing processes transform flat sheet metal into high-aspect-ratio tubes, caps, and stepped shells. Reduces raw material waste while optimizing grain structure for heavy-duty automotive and fluid management systems.
Get a QuoteWe offer an extensive range of precision-certified sheet metals including Stainless Steel, Aluminum Alloy, Brass & Copper, and Cold Rolled Steel, engineered for seamless deep draw stamping applications. If your design requires specific grain structures or custom mechanical properties, LS Manufacturing provides tailored alloy selection to ensure optimal formability and zero defect rates.
Stainless Steel (304 / 316L) demonstrates exceptional ductility, work-hardening capabilities, and superior corrosion resistance, eliminating wall-thinning and material tearing under severe deep draw forces. It is ideal for high-pressure enclosures, automotive fluid management systems, and medical-grade housings, fully meeting the stringent structural integrity standards of deep draw stamping processes.
Accelerate Your Production With Precision Deep Draw Stamping Solutions!
Upload Your FilesOptimize performance, eliminate surface defects, and prevent corrosion across your custom deep drawn parts. At LS Manufacturing, our certified finishing solutions enhance wear resistance, ensure total part protection, and satisfy demanding ISO/ASTM standards for high-volume OEM production.
Remove micro-burrs and sharp edges after multi-stage deep drawing. Ensures consistent edge radiusing and smooth surfaces for safe handling.
Eliminate tough scale and thermal oxidation from deep drawn shells. Creates a soft matte texture to improve downstream coating adhesion.
Achieve a premium linear grain look on deep drawn enclosures. Masks surface imperfections while maintaining precise part dimensions.
Apply a durable protective polymer layer over steel housings. Delivers high impact strength and weather resistance for outdoor use.
Enhance surface hardness and corrosion resistance with zinc, nickel, or tin. Essential for electrical terminals and fluid connectors.
Restore corrosion resistance on stainless steel containers. Removes free iron contaminants to build a protective chromium oxide layer.
Form a non-conductive layer on deep drawn aluminum components. Ideal for aerospace and electronic cans requiring chemical resistance.
Produce a dark conversion finish with zero dimensional change. Offers light corrosion resistance and anti-glare protection for hardware.
Print durable component IDs, warning labels, or schematics directly onto enclosures. High-adhesion inks resist oil, heat, and solvents.
Achieve ultra-smooth surfaces with Ra values below 0.2 µm. Eliminates micro-cracks and prevents trap areas in medical deep drawn parts.
Apply a crystalline coating onto steel deep drawn shells. Improves corrosion protection and provides an ideal base for secondary painting.
Deliver fast, cost-effective mass finishing for small deep drawn shells. Ideal for high-volume parts requiring uniform surface prep.
LS Manufacturing delivers advanced deep draw stamping engineering focused on eliminating wall-thinning, wrinkling, and structural weakness. We specialize in transforming complex sheet metal designs into seamless, high-strength tubular and box enclosures with tight tolerances, resolving critical supply chain bottlenecks and per-part manufacturing costs for automotive, aerospace, and medical OEMs.
| Specifications | Capabilities |
|---|---|
| Maximum Draw Depth | Up to 200 mm (7.87 in) |
| Material Thickness Range | 0.15 mm to 5.0 mm (0.006 in to 0.197 in) |
| Dimensional Tolerances | As tight as ±0.015 mm (±0.0006 in) |
| Production Speed & Volume | Up to 150+ SPM for automated multi-station transfer runs |
| Tooling & Mass Lead Time | Rapid prototype tooling in 7-12 days, full volume production in 3-4 weeks |
Note: Achievable draw ratios, wall uniformity, and tolerances depend on material ductility, draw speed, and component geometry. Upload your design files for a comprehensive DFM and engineering analysis.
Upload your design files for a detailed engineering review.
Deep draw stamping transforms flat sheet metal into complex, seamless cylindrical and rectangular components. As an essential solution for high-volume manufacturing, LS Manufacturing addresses the critical demand for producing hollow, deep-cavity parts with superior wall uniformity and zero leak risks, driving reliability from automotive fluid systems to medical enclosures.
Ready to Upgrade Your Deep Draw Stamping Production?
Get Instant QuoteAt LS Manufacturing, quality is built into every stage of the deep draw stamping process, from raw sheet metal validation to final part inspection. Backed by ISO 9001 and IATF 16949 certifications, our quality management system eliminates material tearing, wall thinning, and dimensional errors for demanding OEM applications.
We utilize precision metrology equipment to verify complex part dimensions. CMM machines measure deep cavity profiles, ultrasonic gauges detect wall thinning, and optical vision systems inspect critical radii and tapers to guarantee sub-micron tolerance accuracy.
Every sheet metal lot undergoes strict material certification before stamping. We perform XRF alloy chemistry analysis, tensile tests, and bursting pressure evaluations to ensure optimal ductility, prevent micro-cracking, and guarantee leak-proof performance under pressure.
Our optimized drawing process achieves a first-article inspection (FAI) pass rate over 98%. By controlling material flow and blank holder pressure, we eliminate wrinkling and wall fracture. Any non-conformance receives immediate root-cause analysis and fast replacement.

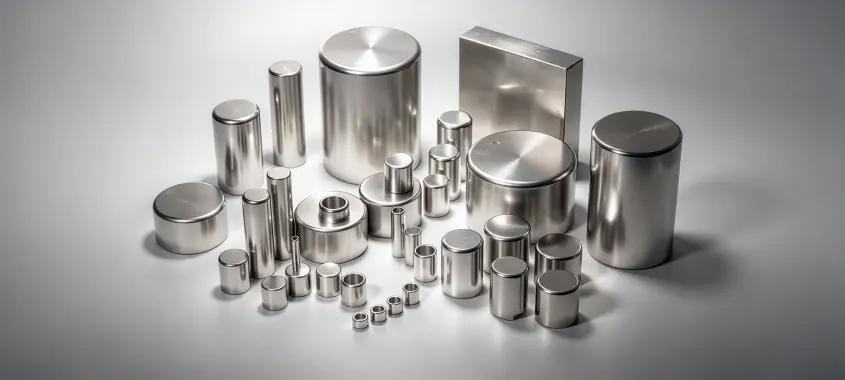

From material selection through multi-stage forming, our deep draw specialists build a controlled path from design validation to repeatable production.
Eliminate material tearing, wall thinning, and multi-vendor delays. As your end to end partner, LS Manufacturing integrates die design, multi-stage transfer stamping, and surface finishing into one seamless process. We reduce technical risks to deliver quality parts on schedule.
Stop settling for rigid processes that inflate part costs. Our engineering team evaluates your part geometries to deploy the ideal strategy, whether you need rapid prototypes for testing or high-speed transfer dies for mass production. We align tooling and capacity with your goals.
Validate deep drawn designs without heavy inventory commitments or large upfront costs. Our flexible scheduling provides ultimate versatility for short prototype runs, bridge tooling, and high-volume production, making precision deep draw stamping accessible for any project scale.
Proceed with confidence rather than costly trial and error. Our engineers conduct thorough DFM reviews and material flow simulations prior to die fabrication. This critical step prevents wrinkling and stress concentration early, ensuring optimal tool life and on-time delivery.
Your designs and data are protected with strict confidentiality and security protocols.
Standard stamping relies on shallow punching and bending that can crack deep parts. Deep draw stamping uses controlled hydraulic material flow to create seamless, hollow components where depth exceeds diameter, eliminating weak welded seams.
Tearing occurs when drawing tension exceeds tensile limits. We use multi-station transfer dies with calibrated blank holder pressure and specialized lubricants to manage material flow and maintain consistent wall thickness.
Yes, we specialize in high-tonnage processing of work-hardening alloys. Our heavy-duty press infrastructure draws stainless steel, aluminum, brass, and copper without microscopic stress cracking or edge tearing.
Yes. Because our multi-stage tooling delivers ready-to-assemble, seamless enclosures directly off the press, you bypass costly downstream operations like deep-hole CNC machining, tube welding, and surface grinding.
Our precision tooling maintains exceptional stability across high-volume runs. Under optimal tool conditions, LS Manufacturing routinely achieves wall-thickness consistency and linear tolerances as tight as ±0.015 mm (±0.0006 in).
Our advanced press infrastructure handles sheet metal thicknesses ranging from 0.15 mm (0.006 in) up to 5.0 mm (0.197 in), depending on material ductility and required draw ratios.
Friction during deep drawing causes tool galling and dimensional drift. We engineer our dies using wear-resistant carbide and specialized tool steels with PVD coatings and automated lubrication to ensure long tool life.
Our FAI pass rate exceeds 98% because we perform thorough DFM analysis before cutting steel. Advanced metal-flow simulation software calibrates draw ratios and springback in advance, eliminating costly trial-and-error delays.
Our integrated quality infrastructure is anchored by dual IATF 16949 and ISO 9001 certifications. Every production lot undergoes non-contact 3D laser scanning, ultrasonic wall-thickness checks, and leak testing.
We deliver rapid prototype tooling and verification samples in 7 to 12 business days. Full-scale production multi-stage transfer tools and automated line setups launch within 3 to 5 weeks.
